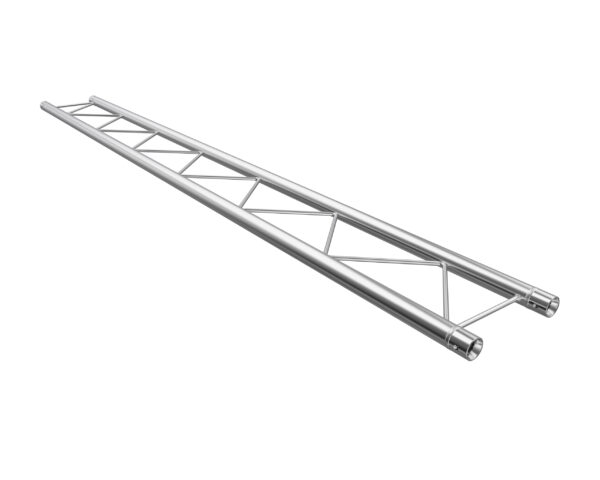

F22 Flat 2.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F22L200

• F22 is a TÜV-certified 2-point truss system
• External dimension: 22 cm
• Ideal for smaller, low-load structures – grid ceilings, exhibition stands, fixed installs
• Supports spans up to 7 metres in grid configurations
• Made from 35×1.6 mm aluminium chords with 8 mm diagonal bracing
• Conical connectors included for quick and secure assembly
Description
The F22 truss system from Global Truss is a TÜV-certified 2-point system with an external dimension of 22 cm. This system is ideal for smaller, low-load structures used as grid ceilings for exhibition stands and fixed installations. Spans of up to 7 meters are possible when used in a grid configuration.
The F22 truss is constructed from 35×1.6 mm aluminum chords and 8 mm diagonal bracing. The trusses are connected with conical connectors, which are included in the delivery.
