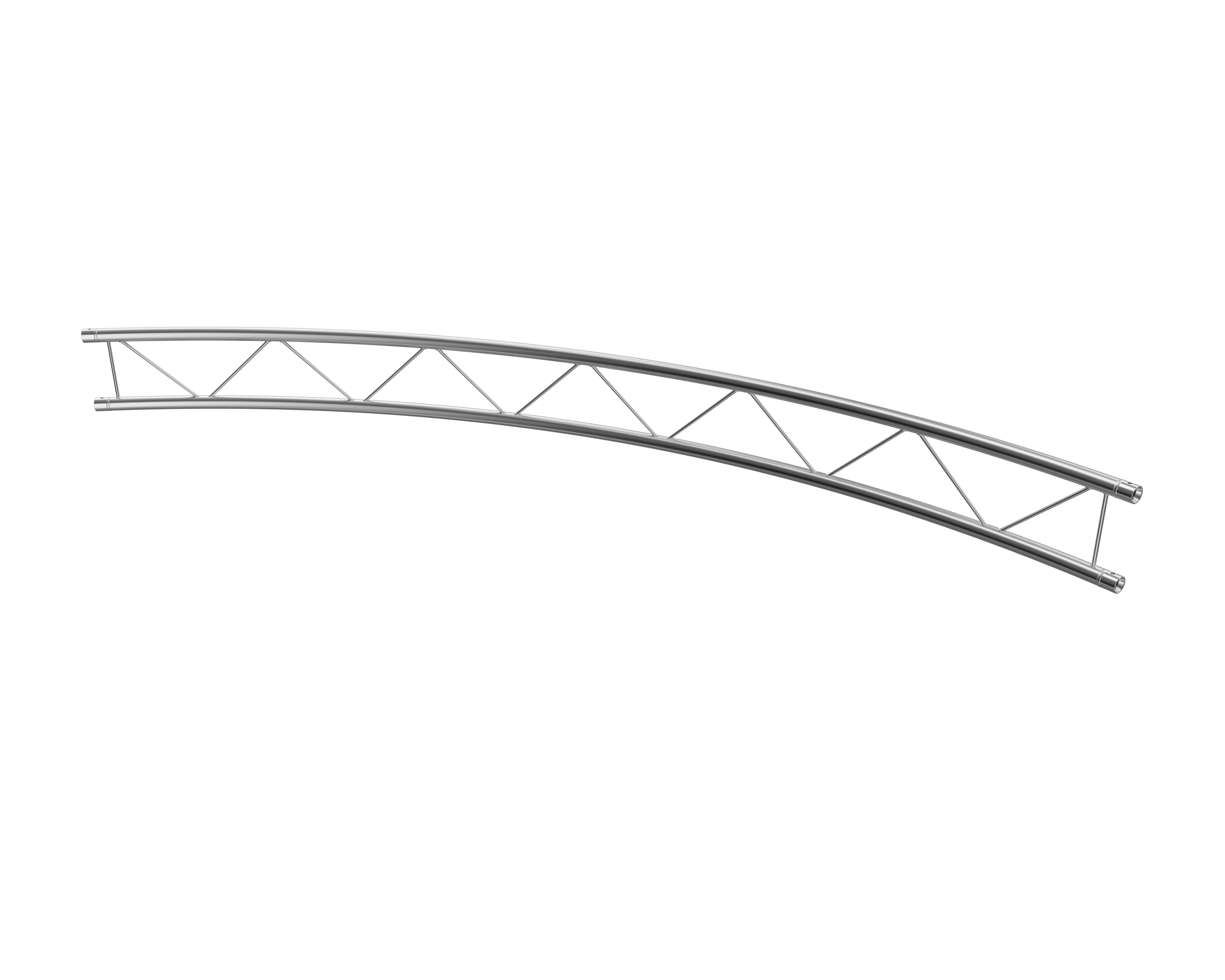

F22 Flat 5.0mR (10.0mØ) 30° Radial Truss – Vertical (12 parts to a Circle)
SKU: GT-F22R500-30-V
• TÜV-certified 2-point radial truss system
• 22 cm external dimension
• Suitable for compact, low-load applications
• Ideal for circular grid ceilings, exhibition stands, and fixed installs
• Supports spans up to 7 metres in grid configurations
• Made from 35×1.6 mm aluminium chords with 8 mm bracing
• Includes conical connectors for easy and secure assembly
Description
The F22 radial or circle truss system from Global Truss is a TÜV-certified 2-point system with an external dimension of 22 cm. This system is ideal for smaller, low-load structures used as grid ceilings for exhibition stands and fixed installations. Spans of up to 7 meters are possible when used in a grid configuration.
The F22 truss is constructed from 35×1.6 mm aluminum chords and 8 mm diagonal bracing. The trusses are connected with conical connectors, which are included in the delivery.
