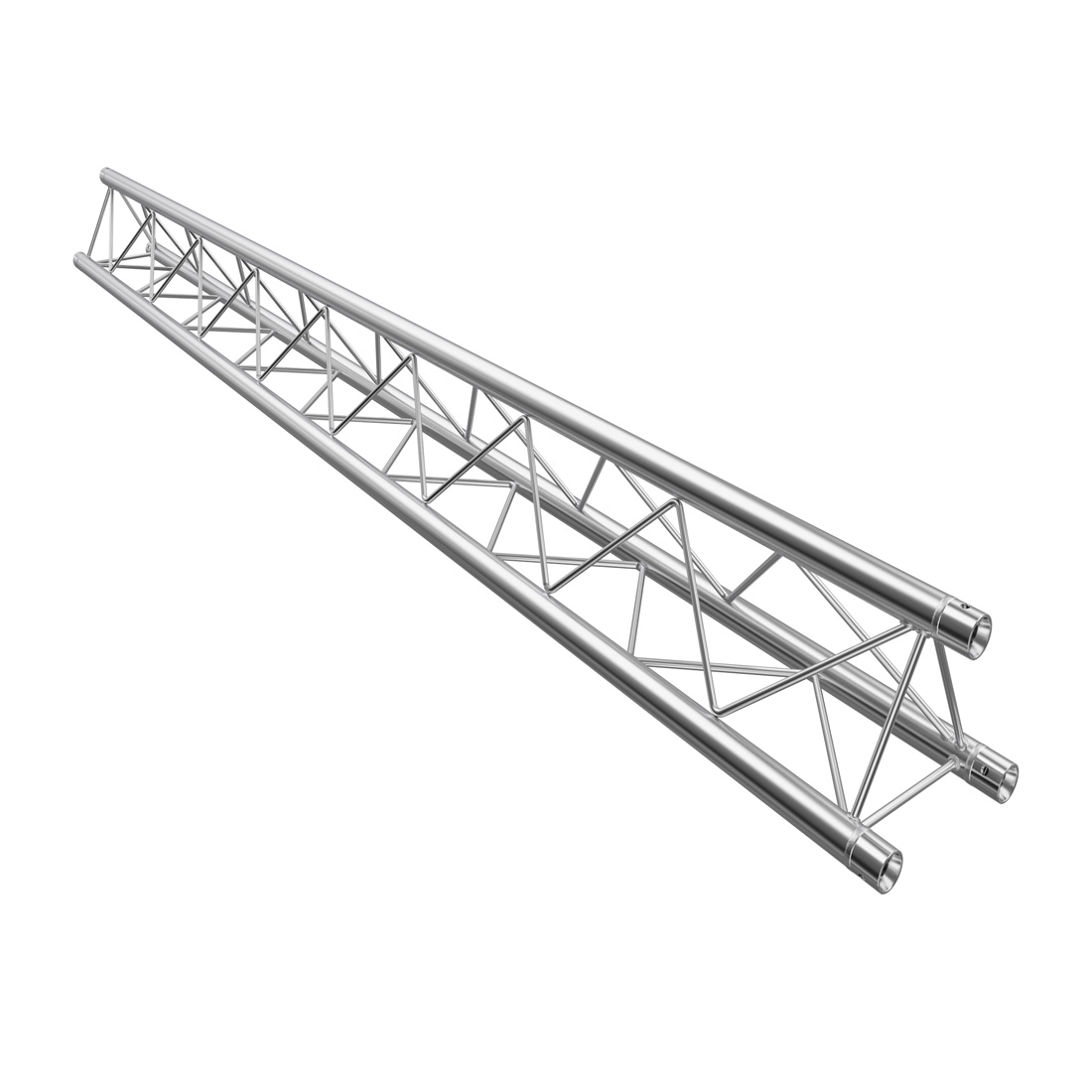

F23 Tri 2.5m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F23L250F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23L250
Categories: F23 Mini Tri Truss Straight Lengths, F23 Mini Tri Truss, Global Truss
Tags: titanav, Custom Truss Box Truss, global truss catalog, square truss, Tent Truss, lighting truss parts, stage lighting mounting bars, Aluminium Truss, dj city, titanav truss, Tri Truss, global truss distributor, global truss clamps, lighting truss system price list, stage lighting rig, 220 Tri Truss, Steel Truss, dq, truss coupler clamp, Triangular Truss, global truss f34 load data, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, stage lighting truss design, 220 Triangular Truss, Concert Truss, entertainment lighting, truss lighting systems, Flat Truss, global truss f44, Clamps, lighting trusses, stage lighting trusses, FD23, AV Truss, entertainment production, truss plate, Ladder Truss, global truss for sale, globaltruss, Couplers, phantos, stage truss design, E20D, Truss Grid, entertainment rigging, truss structures, lighting truss, Theatre Truss, global truss pinnex, Cosmic Truss, DNA truss, pre-rig truss, stage truss manufacturers, Tri Truss 220, Lighting Grid, entertainment rigging australia, when is a rigger required, truss, Space Frame, light truss, Prolyte, Stage clamps, production, stage truss systems, F23-5m, Lighting Bar, entertainment rigging companies, global truss, Touring Truss, lighting clamps, Bolt Truss, Truss Australia, rigger course, stage trusses, GT F23L250, Truss Tube, event rigging, stage truss, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, store dj, Lighting Tube, global truss accessories, alutruss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, theatre rigging, Circus Truss, global truss australia, stage lighting truss, Truss Hinge, lighting truss dj, Alloy Truss, design quintessence, stage light trusses
Global Truss Manual
DownloadF23 Mini Tri Truss Information Sheet
DownloadF23 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
![]() |
F23-MINI-TRI-TRUSS_1 | application/pdf | 1,005 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
