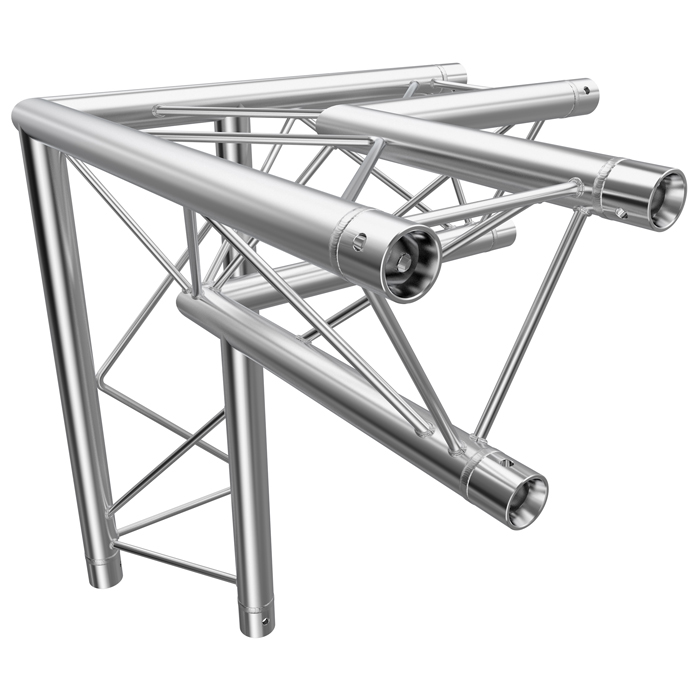

F23 Tri Truss 3 Way 90° Horizontal Corner (Apex Down) to Vertical Junction with Spigots, Pins & R-Clips – Right
SKU: GT-F23J33
• Light-duty truss – 220 mm external dimension with 35 mmØ chords
• Compact and subtle design for space-limited installations
• Ideal for retail displays, exhibitions, signage, and hospitality venues
• Wide range of straights, radials, and junctions for creative configurations
• Compatible with 35 mmØ clamping accessories
• Custom components available – designed by DQ, made to order
Description

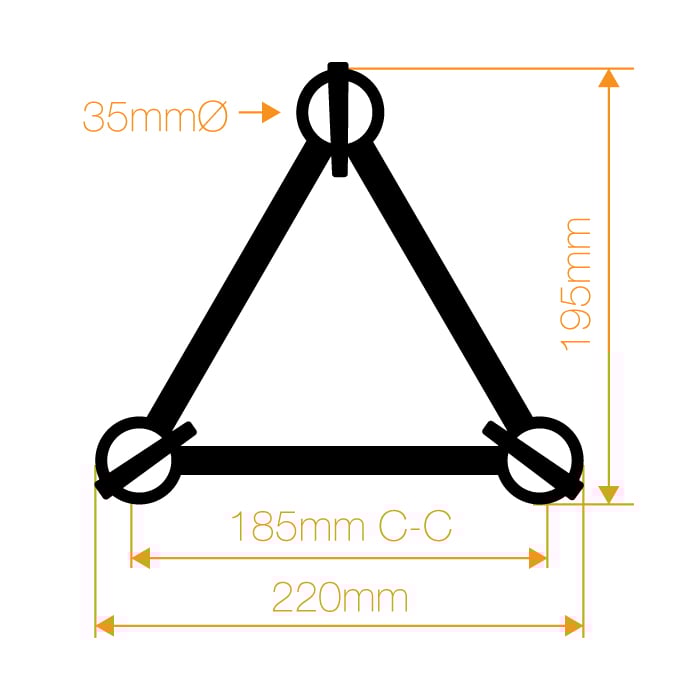

F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 2.0 | 129 | 65 |
| 3.0 | 127 | 42 |
| 4.0 | 124 | 31 |
| 5.0 | 121 | 24 |
| 6.0 | 118 | 20 |
| 7.0 | 100 | 17 |
| 8.0 | 86 | 14 |
| 9.0 | 74 | 12 |
| 10.0 | 65 | 11 |
