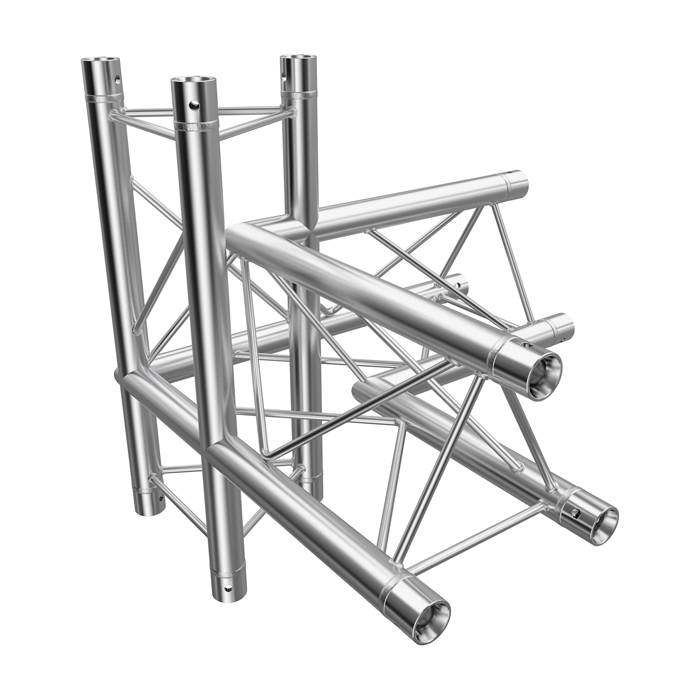

F23 Tri Truss 4 Way 90° Horizontal Corner to Vertical Junction (Up & Down) with Spigots, Pins & R-Clips – Left
SKU: GT-F23J45F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23J45
Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Junctions, Global Truss
Tags: Tri Truss, global truss distributor, titanav truss, lighting truss system price list, Steel Truss, dq, stage lighting rig, FD23, Triangular Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, Concert Truss, entertainment lighting, stage lighting truss design, E20D, lighting truss, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, AV Truss, entertainment production, stage lighting trusses, Tri Truss 220, truss, Ladder Truss, global truss for sale, truss plate, globaltruss, Couplers, phantos, Truss Grid, entertainment rigging, stage truss design, global truss, Theatre Truss, global truss pinnex, truss structures, Cosmic Truss, DNA truss, pre-rig truss, Lighting Grid, entertainment rigging australia, stage truss manufacturers, GT F23J45, stage truss, Space Frame, light truss, when is a rigger required, Prolyte, Stage clamps, production, Lighting Bar, entertainment rigging companies, stage truss systems, F23 4 Way 90° Hor Corner to Vert Junc-90° Hor Corner to Vert, alutruss, Touring Truss, lighting clamps, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, stage lighting truss, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj, square truss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, Circus Truss, global truss australia, theatre rigging, global truss clamps, Truss Hinge, lighting truss dj, Alloy Truss, design quintessence, stage light trusses, 220 Tri Truss, Custom Truss Box Truss, global truss catalog, titanav, stage lighting truss systems, Tent Truss, lighting truss parts, Aluminium Truss, dj city, stage lighting mounting bars, 220 Triangular Truss
Description
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
F23-MINI-TRI-TRUSS_1 | application/pdf | 1,005 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Junctions |
