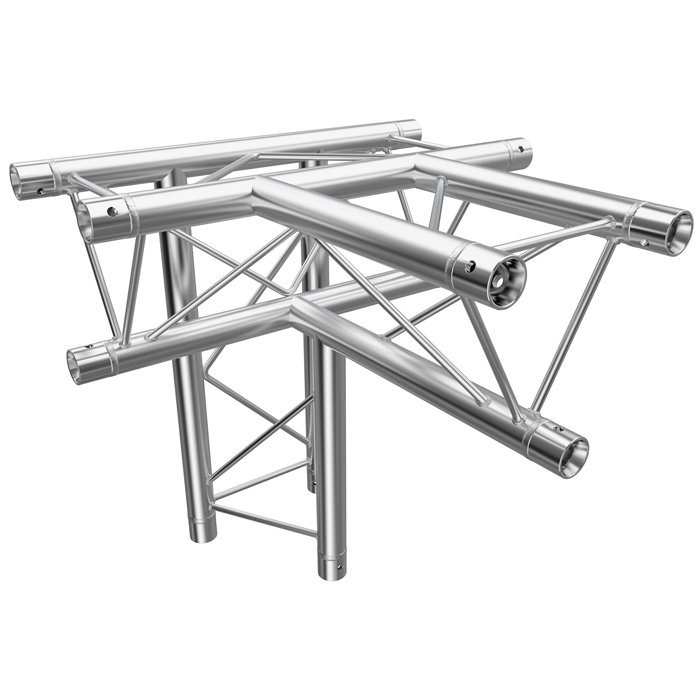

F23 Tri Truss 4 Way Horizontal T- to Vertical Junction (Apex Down) with Spigots, Pins & R-Clips

SKU: GT-F23J42

F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.

F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.

A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.

Product: GT-F23J42 Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Junctions, Global Truss Tags: dq, stage lighting rig, FD23, Steel Truss, Triangular Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, entertainment lighting, stage lighting truss design, E20D, Concert Truss, Flat Truss, global truss f44, truss lighting systems, lighting truss, Clamps, lighting trusses, entertainment production, stage lighting trusses, Tri Truss 220, AV Truss, Ladder Truss, global truss for sale, truss plate, truss, Couplers, phantos, globaltruss, entertainment rigging, stage truss design, Truss Grid, Theatre Truss, global truss pinnex, truss structures, global truss, DNA truss, pre-rig truss, Cosmic Truss, entertainment rigging australia, stage truss manufacturers, GT F23J42, Lighting Grid, Space Frame, light truss, when is a rigger required, stage truss, Stage clamps, production, Prolyte, entertainment rigging companies, stage truss systems, F23 4 Way Horiz T- to Vert Junc -4 Way Horiz T- to Vert Junc, Lighting Bar, Touring Truss, lighting clamps, alutruss, Truss Australia, rigger course, Bolt Truss, event rigging, stage trusses, Truss Tube, PRT, lighting trigger clamps, stage lighting truss, audio brisbane, rigging, 300mm Truss, global truss accessories, store dj, Lighting Tube, Truss Circle, lighting truss australia, square truss, box truss design, stage design, Plus Truss, global truss australia, theatre rigging, Circus Truss, Truss Hinge, lighting truss dj, global truss clamps, design quintessence, stage light trusses, 220 Tri Truss, Alloy Truss, global truss catalog, titanav, Custom Truss Box Truss, Tent Truss, lighting truss parts, stage lighting truss systems, dj city, stage lighting mounting bars, 220 Triangular Truss, Aluminium Truss, global truss distributor, titanav truss, Tri Truss, lighting truss system price list

Global Truss Manual

F23 Mini Tri Truss Information Sheet

	Title	Type	Size
	F23-MINI-TRI-TRUSS_1	application/pdf	1,005 KB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6061 T6
Bracing Material	EN AW 6061 T4
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	35mmØ x 1.6mm
Bracing Dimensions	8mmØ Bar
Connectors Included	3 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	500
External Height (mm)	500
Pack Length	510
Pack Depth	510
Pack Height	520
Net weight of the product (kg)	3.6
Pack Weight	5.6
Cubic volume (m³)	0.1353
Product Type	Junctions
