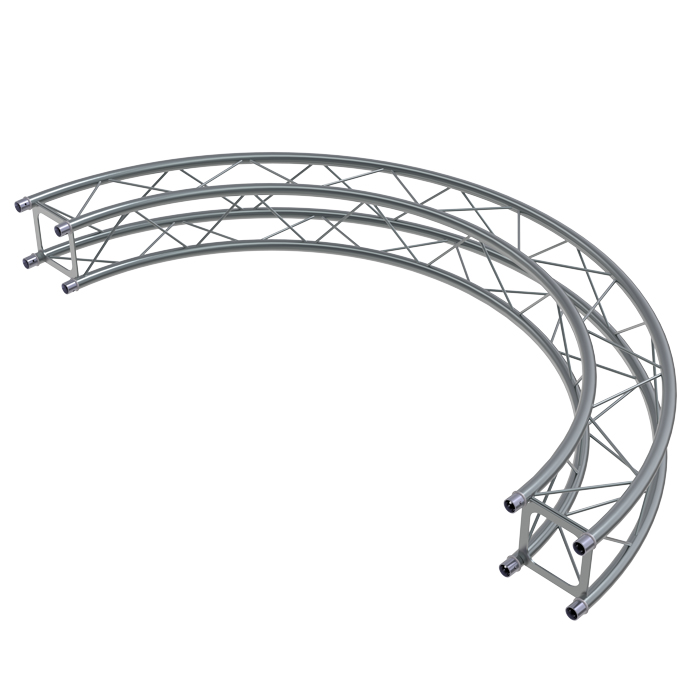

F24I 1.0mR (2.0mØ) 180° Radial Truss (2 parts to a Circle) with Spigots, :Pins & R-Clips

SKU: GT-F24IR100-180

Global Truss

• Light-duty square truss with compact dimensions and 35mmØ chords
• Suitable for light-duty applications where space is limited
• Commonly used in retail displays, exhibitions, signage, and venues
• Modular system with straight lengths, radials, and six-way junctions
• Compatible with 35mmØ clamps and custom components available

External Length (mm)

External Depth/Width (mm)

External Height (mm)

220

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

220

Chord Style (mm)

Square

Diameter (mm)

2

Pack Length (m)

2020

Pack Depth (m)

1020

Pack Height (m)

240

Pack Weight (kg)



Net Weight (kg)
Product Type

Radial

Bracing Dimensions (mm)

35mmØ x 1.6mm

Chord Dimensions

8mmØ Bar

SKU: GT-F24IR100-180 Categories: , , Brand:

Description

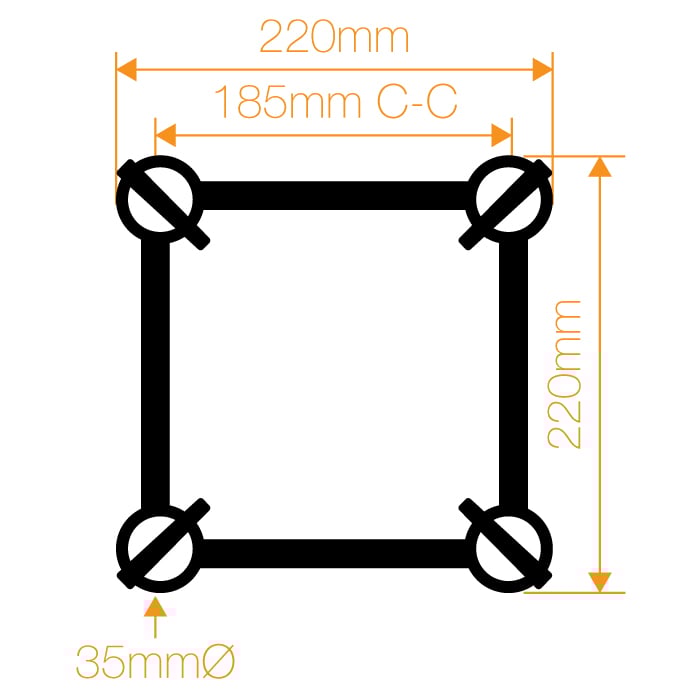

F24 Square Mini Truss is a light-duty truss with 220mm x 220mm outer dimensions and 35mmø chords. This truss is appropriate where light-duty structural capacity is necessary, but space is limited.

F24 Square Truss has a more subtle aesthetic than larger trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F24 Square Truss. Being square, the F24 Truss has greater modularity than its triangular equivalent, thanks in part to a six-way cube junction, the building block of a square truss system.

A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
