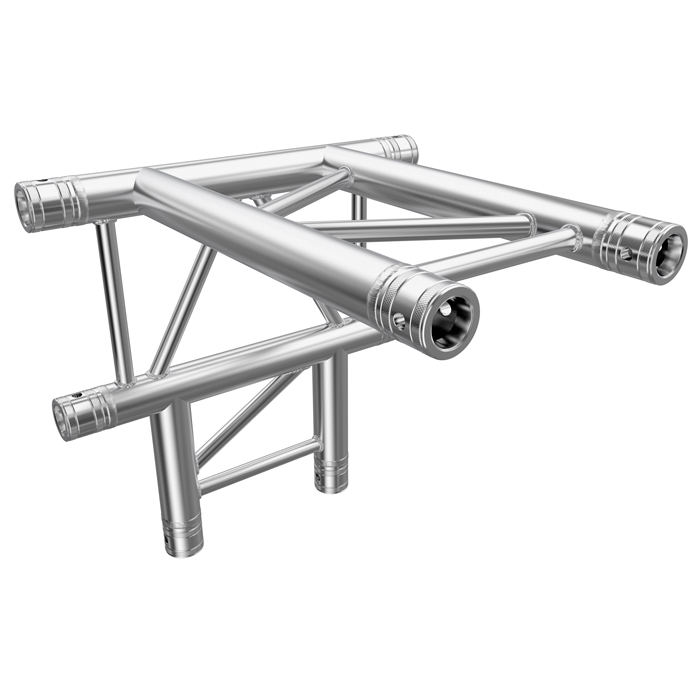

F32 Flat Truss 4 Way T- to Vertical Junction with Spigots, Pins & R-Clips – Horizontal

Name: F32 Flat Truss 4 Way T- to Vertical Junction with Spigots, Pins &amp; R-Clips - Horizontal
SKU: GT-F32J42-H
Availability: InStock

SKU: GT-F32J42-H

F32 Truss is a medium-duty flat or “ladder” style truss that is 290mm wide OD with 50mmø chords. Flat Truss is quite strong in the vertical plane but, with only two chords, it does not offer a lot of resistance in the lateral plane without amy bracing.

When bracing is used, however, F32 Flat Truss can provide a surprisingly strong yet lightweight grid solution. It is suited for use in theatres, clubs, houses of worship, conference centres, schools and other buildings such as suspending curtains/drapes, bracing, lighting and cable reticulation. Versatility is assured by the range of straight lengths, junctions and radials on hand.

A great number of 50mmø accessories are compatible with F32 Flat Truss. Custom components can be designed by the DQ team and made to order.

Product: GT-F32J42-H Categories: F32 Flat Truss Horizontal Junctions, F32 Flat Truss, Global Truss Tags: square truss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, Circus Truss, global truss australia, theatre rigging, global truss clamps, Truss Hinge, lighting truss dj, Alloy Truss, design quintessence, stage light trusses, 290 Flat Truss, Custom Truss Box Truss, global truss catalog, titanav, stage lighting truss systems, Tent Truss, lighting truss parts, Aluminium Truss, dj city, stage lighting mounting bars, 290 Ladder Truss, Tri Truss, global truss distributor, titanav truss, lighting truss system price list, Steel Truss, dq, stage lighting rig, FD32, Triangular Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, Concert Truss, entertainment lighting, stage lighting truss design, HD32, lighting truss, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, AV Truss, entertainment production, stage lighting trusses, Flat Truss 290, truss, Ladder Truss, global truss for sale, truss plate, globaltruss, Couplers, phantos, Truss Grid, entertainment rigging, stage truss design, global truss, Theatre Truss, global truss pinnex, truss structures, Cosmic Truss, DNA truss, pre-rig truss, Lighting Grid, entertainment rigging australia, stage truss manufacturers, GT F32J42-H, stage truss, Space Frame, light truss, when is a rigger required, Prolyte, Stage clamps, production, Lighting Bar, entertainment rigging companies, stage truss systems, F32 4 Way T- to Vertical Junct -4 Way T- to Vertical, alutruss, Touring Truss, lighting clamps, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, stage lighting truss, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj

F32 Flat Truss Information Sheet

Download

	Title	Type	Size
	F32-FLAT-TRUSS_1	application/pdf	1,004 KB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 2mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	2 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	500
External Height (mm)	500
Pack Length	510
Pack Depth	510
Pack Height	520
Net weight of the product (kg)	5.1
Pack Weight	7.3
Cubic volume (m³)	0.1353
Product Type	Horizontal Junctions
