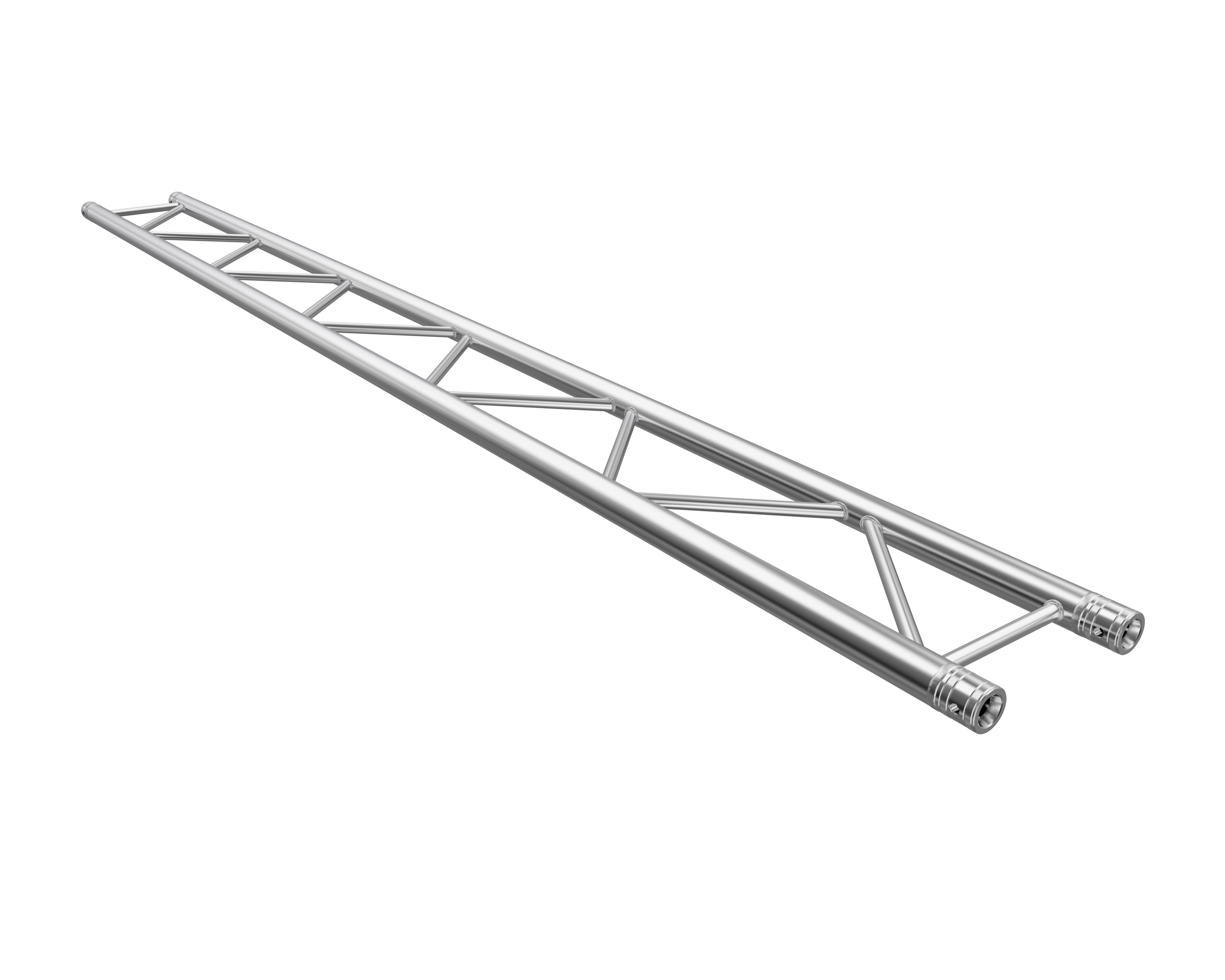

F32P Flat 3.0m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F32PL300

Global Truss

• 290 mm OD flat/ladder truss with 50 mmØ x 3 mm wall main chords for enhanced strength
• Thicker wall (3 mm) provides greater load capacity and durability than standard 2 mm versions
• Available in straight lengths, junctions, and radial (circle) truss segments
• TÜV-certified by Global Truss for compliance with strict safety and performance standards
• Fully compatible with 50 mmØ clamps and accessories, with custom options available through DQ

External Length (mm)

External Depth/Width (mm)

External Height (mm)

290

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

290

Chord Style (mm)

Flat

Diameter (mm)
Pack Length (m)

3020

Pack Depth (m)

310

Pack Height (m)

60

Pack Weight (kg)

11.5

Net Weight (kg)

11.3

Product Type

Linear

Bracing Dimensions (mm)

50mmØ x 3mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F32PL300 Categories: , , Brand:

Description

F32P Flat Truss – 3 mm Wall
The F32P Flat Truss, also known as ladder truss, is a premium medium-duty aluminium truss system with a 290 mm outer width and 50 mmØ main chords crafted from 3 mm wall aluminium. Compared to standard 2 mm wall flat truss, the F32P’s thicker 3 mm chord construction offers increased load-bearing capacity, improved durability, and greater resistance to denting and deformation, making it an excellent choice for more demanding rigging environments.

This truss is optimised for vertical strength, and while it has limited lateral resistance due to its two-chord (ladder-style) design, bracing can be used to create strong, lightweight overhead grid structures. The F32P range includes straight lengths, junctions, and curved (circle) truss segments for building comprehensive truss systems. It is ideally suited to installations in theatres, clubs, houses of worship, schools, conference centres, and exhibitions, particularly where weight constraints are a factor.

Manufactured by Global Truss, the F32P is engineered to the highest international standards and comes TÜV-certified, offering confidence in safety and structural integrity. It is fully compatible with 50 mmØ clamps, accessories, and DQ’s range of mounting hardware. Custom finishes and component modifications are available through Design Quintessence.
