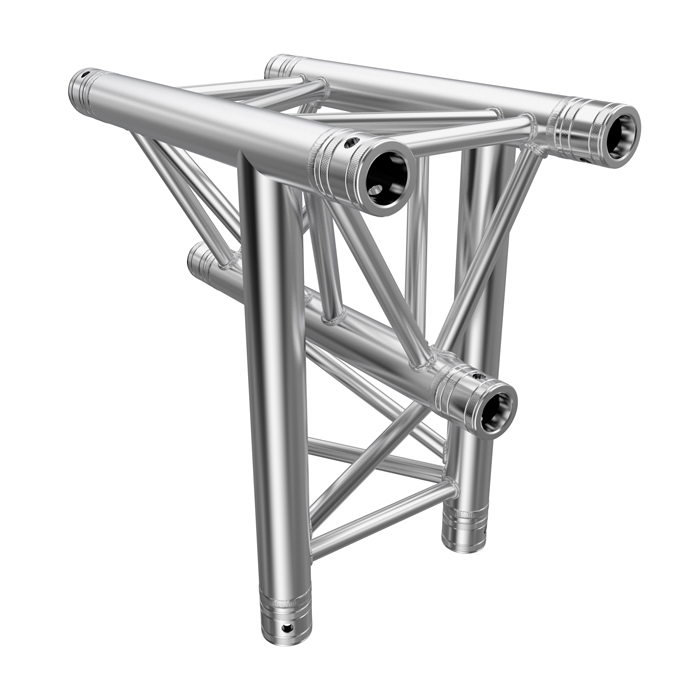

F33 Tri Truss 3 Way Vertical T-Junction (Apex Down) with Spigots, Pins & R-Clips
SKU: GT-F33J38F33 Triangular Truss is a medium-duty truss with an outside dimension of 290mm and 50mmø chords. With good strength and weight vs cost rations, F33 Truss offers significant bang for buck.
Ideally found in houses of worship, schools, clubs, theatres, pubs and clubs, conference centres, museums, exhibitions and retail centres. Application types include arches, entry structures, display stands, signage and banner frames, LED panel frames, suspend lighting and AV equipment, projection screen frames, suspend drapes, etc.
Versatility is assured by the range of straight lengths, junctions and radials on hand and, of course, all the 50mmø accessories at your fingertips.
Custom components can be designed by the DQ team and made to order.
Product: GT-F33J38
Categories: F33 Tri Truss Junctions, F33 Tri Truss, Global Truss
Tags: Truss Australia, rigger course, Bolt Truss, event rigging, stage trusses, Truss Tube, PRT, lighting trigger clamps, alutruss, audio brisbane, rigging, 300mm Truss, global truss accessories, store dj, GT F33J38, Lighting Tube, Truss Circle, lighting truss australia, stage lighting truss, box truss design, stage design, Plus Truss, global truss australia, theatre rigging, Circus Truss, Truss Hinge, lighting truss dj, square truss, design quintessence, stage light trusses, Alloy Truss, global truss catalog, titanav, Custom Truss Box Truss, Tent Truss, lighting truss parts, global truss clamps, dj city, stage lighting mounting bars, 290 Tri Truss, Aluminium Truss, global truss distributor, titanav truss, Tri Truss, lighting truss system price list, stage lighting truss systems, dq, stage lighting rig, 290 Triangular Truss, Steel Truss, global truss f34 load data, truss coupler clamp, Triangular Truss, 50mm truss clamp, lighting truss with lights, entertainment lighting, stage lighting truss design, FD33, Concert Truss, global truss f44, truss lighting systems, Flat Truss, Clamps, lighting trusses, entertainment production, stage lighting trusses, HD33, AV Truss, global truss for sale, truss plate, lighting truss, Ladder Truss, Couplers, phantos, globaltruss, entertainment rigging, stage truss design, X30D, Truss Grid, global truss pinnex, truss structures, truss, Theatre Truss, DNA truss, pre-rig truss, Cosmic Truss, entertainment rigging australia, stage truss manufacturers, H30D, Lighting Grid, light truss, when is a rigger required, global truss, Space Frame, Stage clamps, production, Prolyte, entertainment rigging companies, stage truss systems, F33 3 Way Vertical T-Junction -3 Way Vertical T-Junction, Lighting Bar, lighting clamps, stage truss, Touring Truss
Global Truss Manual
DownloadF33 Tri Truss Information Sheet
DownloadF33 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 438 | 238 |
5.0 | 354 | 152 |
6.0 | 296 | 105 |
7.0 | 253 | 76 |
8.0 | 219 | 57 |
9.0 | 192 | 45 |
10.0 | 170 | 35 |
11.0 | 151 | 29 |
12.0 | 136 | 23 |
13.0 | 122 | 19 |
14.0 | 109 | 16 |
15.0 | 99 | 14 |
16.0 | 89 | 11 |
17.0 | 80 | 10 |
18.0 | 72 | 8 |
Title | Type | Size | |
---|---|---|---|
![]() |
F33-TRI-TRUSS_1 | application/pdf | 1 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Junctions |
