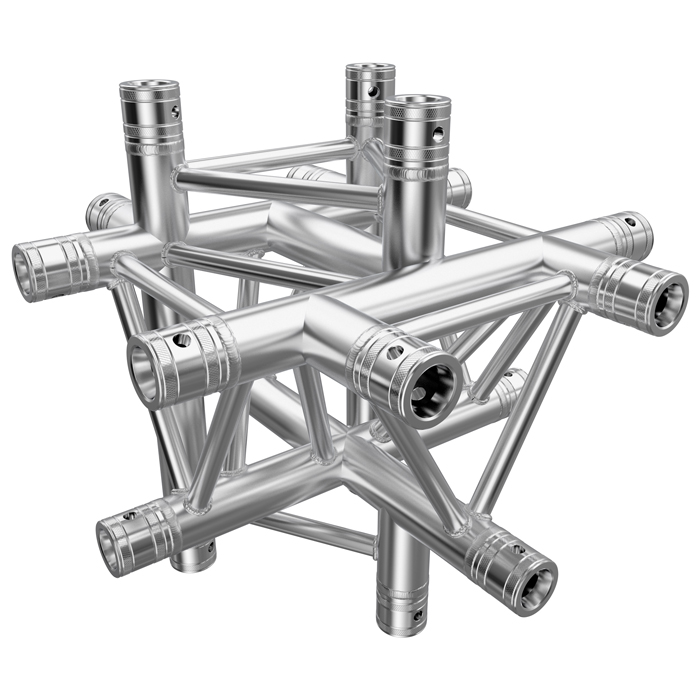

F33 Tri Truss 6 Way Horizontal X- to Vertical Junction (Up & Down) with Spigots, Pins & R-Clips
SKU: GT-F33J61F33 Triangular Truss is a medium-duty truss with an outside dimension of 290mm and 50mmø chords. With good strength and weight vs cost rations, F33 Truss offers significant bang for buck.
Ideally found in houses of worship, schools, clubs, theatres, pubs and clubs, conference centres, museums, exhibitions and retail centres. Application types include arches, entry structures, display stands, signage and banner frames, LED panel frames, suspend lighting and AV equipment, projection screen frames, suspend drapes, etc.
Versatility is assured by the range of straight lengths, junctions and radials on hand and, of course, all the 50mmø accessories at your fingertips.
Custom components can be designed by the DQ team and made to order.
Product: GT-F33J61
Categories: F33 Tri Truss Junctions, F33 Tri Truss, Global Truss
Tags: globaltruss, DNA truss, pre-rig truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, 290 Tri Truss, Lighting Grid, entertainment rigging companies, stage truss systems, truss, Space Frame, lighting clamps, Prolyte, Truss Australia, rigger course, 290 Triangular Truss, Lighting Bar, event rigging, stage trusses, global truss, Touring Truss, lighting trigger clamps, Bolt Truss, audio brisbane, rigging, FD33, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, 300mm Truss, box truss design, stage design, HD33, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, Plus Truss, design quintessence, stage light trusses, X30D, Circus Truss, global truss catalog, titanav, stage lighting truss, Truss Hinge, lighting truss parts, Alloy Truss, dj city, stage lighting mounting bars, H30D, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, Aluminium Truss, dq, stage lighting rig, GT F33J61, Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, Steel Truss, entertainment lighting, stage lighting truss design, F33 6 Way Horiz X-6 Way Horiz X- to, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses, Concert Truss, entertainment production, stage lighting trusses, Flat Truss, global truss for sale, truss plate, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, Ladder Truss, global truss pinnex, truss structures
Global Truss Manual
DownloadF33 Tri Truss Information Sheet
DownloadF33 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 438 | 238 |
5.0 | 354 | 152 |
6.0 | 296 | 105 |
7.0 | 253 | 76 |
8.0 | 219 | 57 |
9.0 | 192 | 45 |
10.0 | 170 | 35 |
11.0 | 151 | 29 |
12.0 | 136 | 23 |
13.0 | 122 | 19 |
14.0 | 109 | 16 |
15.0 | 99 | 14 |
16.0 | 89 | 11 |
17.0 | 80 | 10 |
18.0 | 72 | 8 |
Title | Type | Size | |
---|---|---|---|
F33-TRI-TRUSS_1 | application/pdf | 1 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
Pack Weight | |
Product Type | Junctions |
