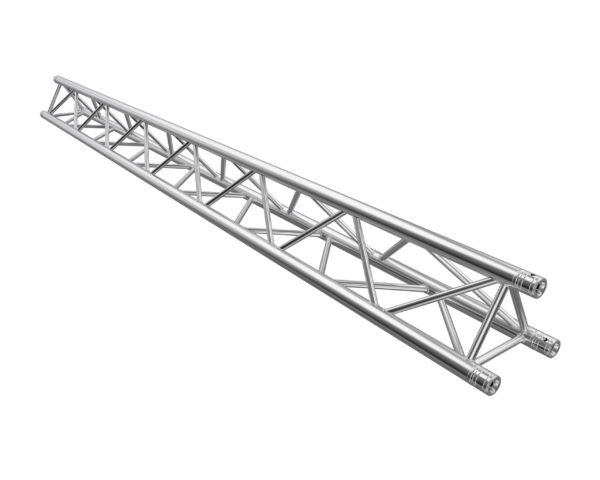

F33P Tri 3.5m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F33PL350

Global Truss

• 290 mm OD triangular truss with 50 mmØ x 3 mm wall chords for enhanced load capacity
• Strong and stable in both vertical and horizontal applications
• Compatible with a full range of junctions, curved (circle) truss segments, and accessories
• Ideal for staging, lighting grids, signage frames, and structural displays
• TÜV-certified Global Truss construction for proven safety and reliability

External Length (mm)

External Depth/Width (mm)

External Height (mm)

258

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

290

Chord Style (mm)

Tri

Diameter (mm)
Pack Length (m)

3520

Pack Depth (m)

310

Pack Height (m)

297

Pack Weight (kg)



Net Weight (kg)

21

Product Type

Linear

Bracing Dimensions (mm)

50mmØ x 3mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F33PL350 Categories: , , Brand:

Description

The F33 Triangular Truss is a medium-duty, 3-chord aluminium truss system with a 290 mm outer dimension and 50 mmØ x 3 mm wall main chords, offering an excellent strength-to-weight ratio for a wide variety of professional applications. Its triangular design provides reliable structural stability in both vertical and horizontal planes, making it suitable for rigging, support, and creative display structures.

Manufactured by Global Truss and TÜV-certified for compliance with international safety standards, the F33 is widely used in event production, theatre, exhibition design, retail displays, houses of worship, schools, and more. It’s highly modular and compatible with a wide range of junctions, curved truss (circle truss) segments, and 50 mmØ accessories, giving designers the flexibility to build everything from simple linear spans to complex, load-bearing installations.
