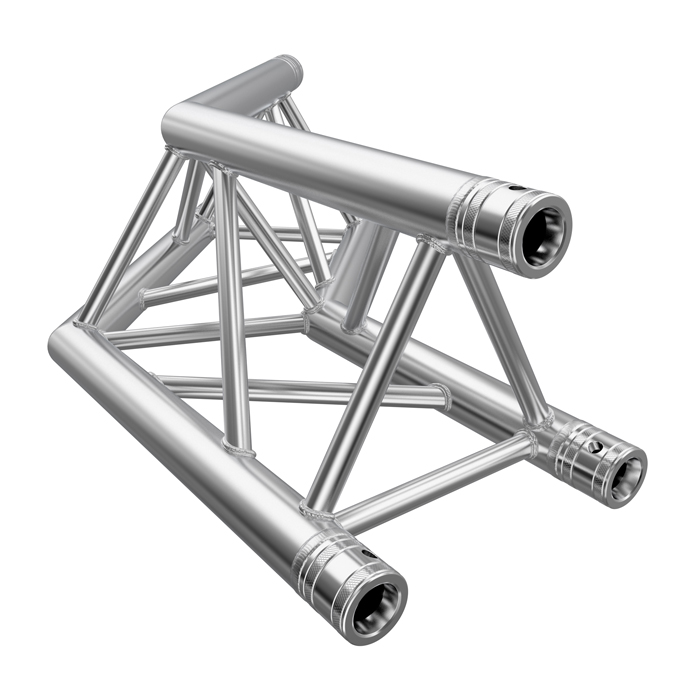

F33P Tri Truss 135° 2 Way Horizontal Corner with Spigots, Pins & R-Clips

SKU: GT-F33PJ23

Global Truss

• Compatible with all F33 Triangular Truss (290 mm OD, 50 mmØ x 3 mm chords)
• Available in a wide range of configurations: 2-way, 3-way, 4-way, T-junctions, corners, apex-up/down
• Enables quick and secure multi-directional truss layouts
• Ideal for exhibitions, theatres, concerts, event production, and retail displays
• Manufactured by Global Truss with TÜV certification for safety and structural assurance

External Length (mm)

External Depth/Width (mm)

External Height (mm)

258

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

290

Chord Style (mm)

Tri

Diameter (mm)
Pack Length (m)

874

Pack Depth (m)

579

Pack Height (m)

297

Pack Weight (kg)



Net Weight (kg)

7.5

Product Type

Junction

Bracing Dimensions (mm)

50mmØ x 2mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F33PJ23 Categories: , , Brand:

Description

The F33 Junctions range is designed to complement the F33 290 mm Triangular Truss system, providing strong and modular connection points for complex truss structures. Made with 50 mmØ x 3 mm wall aluminium chords, these junctions are engineered for medium-duty applications and offer high structural integrity with low weight.

F33 junctions are essential for building reliable grid systems, goalposts, cube structures, arches, and customised rigging frames. The range includes a wide variety of configurations such as 2-way, 3-way, 4-way, T-pieces, corner blocks, and apex-down junctions, allowing users to construct multi-directional layouts quickly and efficiently. Manufactured by Global Truss to the highest standards, all F33 junctions come with TÜV certification, ensuring proven safety and performance in professional environments.
