F34 0-25° Variable Hinged Junction (2.5° Incremental Settings) with Half-Spigots, Screws, Pins & R-Clips

SKU: GT-F34JV0-25

Global Truss

• 290 mm x 290 mm truss with 50 mmØ x 2 mm wall aluminium main chords
• Pinned conical spigot connection for fast, accurate assembly
• Extensive range of junctions: 2-way, 3-way, 4-way, 5-way, 6-way, and custom options
• Broad compatibility with F34 straight lengths, base plates, corners, and accessories
• TÜV-certified for structural safety and manufacturing quality assurance

External Length (mm)

External Depth/Width (mm)

External Height (mm)

290

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

290

Chord Style (mm)

Square

Diameter (mm)
Pack Length (m)

310

Pack Depth (m)

187

Pack Height (m)

310

Pack Weight (kg)



Net Weight (kg)

15.1

Product Type

Junction

Bracing Dimensions (mm)



Chord Dimensions



SKU: GT-F34JV0-25 Categories: , , Brand:

Description

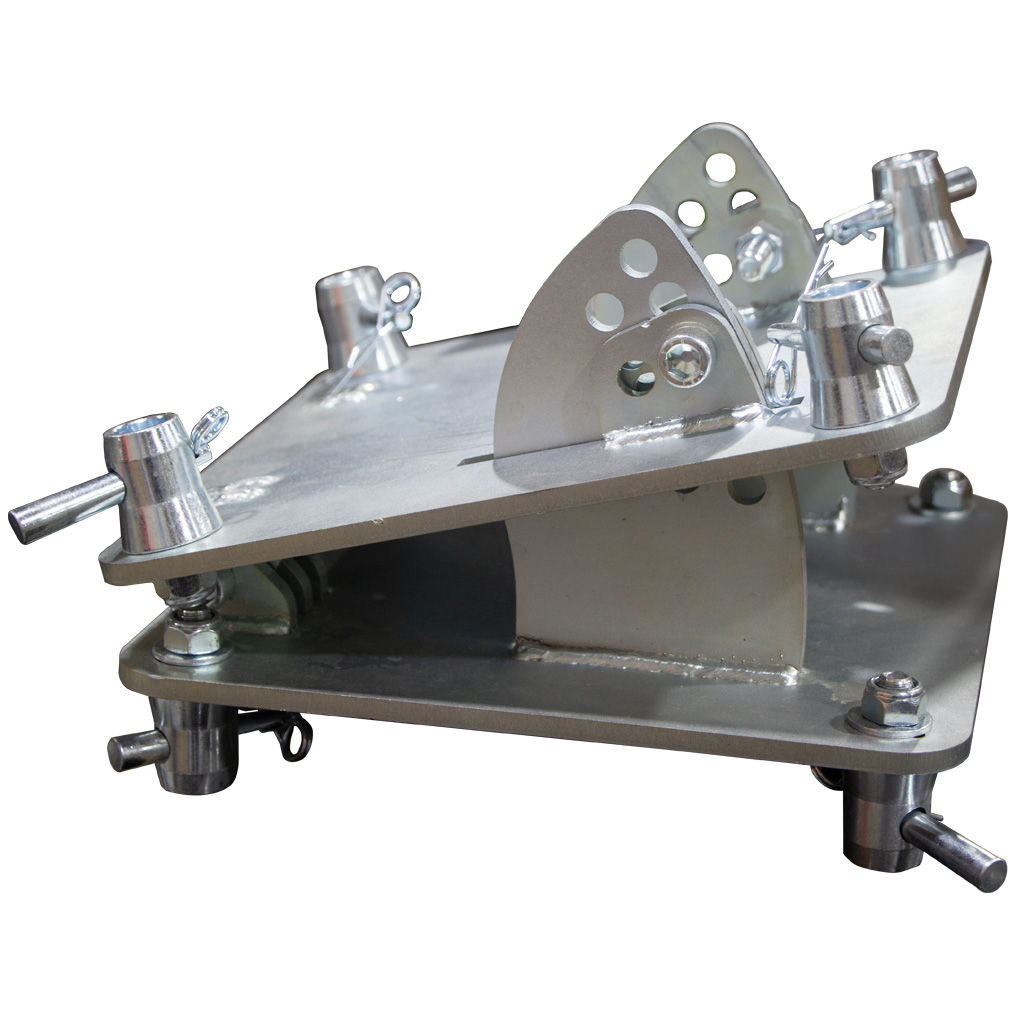

Our most versatile truss junction yet, the Variable Hinged Junction is designed with functionality and aesthetics in mind. The minimal profile perfectly blends into any truss structure while the pre-positioned holes on adjustment blades allow for angles up to 25 degrees. Modifying the angle on your variable hinge is as easy as undoing a pair of high tensile bolts and re-positioning them on 2.5 degrees incremental angles for a new setup.

F34 Square Truss is the staple of the Global Truss diet. It is 290mm x 290mm Truss with 50mmø (x 2mm/3mm) chords and is easily the most commonly used Truss across all applications.

Extremely popular to the professional lighting and audiovisual production industries thanks to its extraordinary versatility and broad modularity, F34 Truss is put to use in a wide variety of permanent and temporary installations in schools, theatres, exhibition halls, conference centres, houses of worship, universities, museums, retail centres and sporting centres etc. Applications vary from stage structures, LED screen frames, outdoor signage, virtual reality structures, fitness course structures, film & television sets and studios, brand reinforcement structures, display stand structures, art and museum exhibit structures, and suspending lighting, sound and video gear.

SPAN (m)CPL (kg)UDL (kg/m)
4.0922501
5.0763344
6.0649247
7.0562177
8.0494135
9.0440106
10.039585
11.035769
12.032458
13.029648
14.027141
15.024935
16.022930
17.021126
18.019523
