F34 DNA 2.5m Linear Truss with Spigots, Pins & R-Clips

Name: F34 DNA 2.5m Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F34DNAL250
Availability: InStock

SKU: GT-F34DNAL250

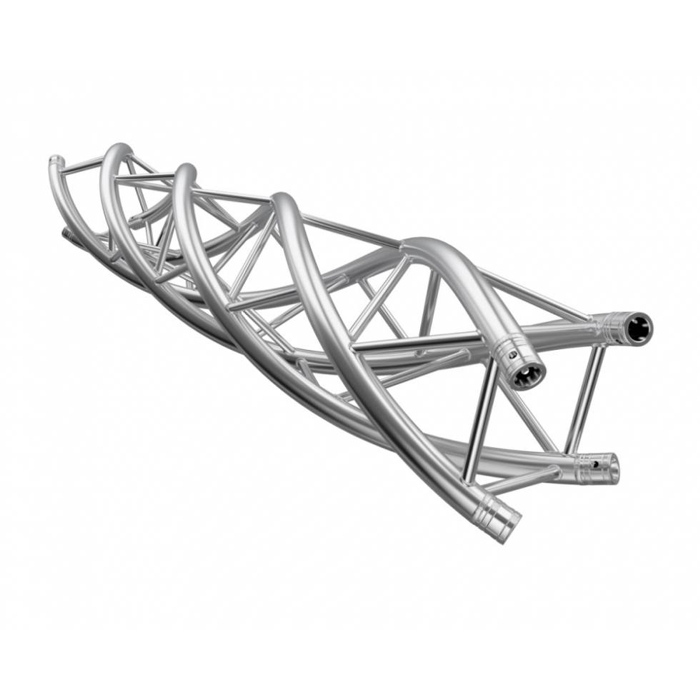

Global Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adaptor pieces can be attached which bring the DNA’s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube 50mm diameter allowing them to fit together using a conical spigot and locking pin. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions.

This product is made to order.

Product: GT-F34DNAL250 Categories: F34 DNA Truss, Global Truss Tags: AV Truss, entertainment rigging, stage truss design, F34DNA, Ladder Truss, global truss pinnex, truss structures, globaltruss, DNA truss, pre-rig truss, Box Truss 290, Truss Grid, entertainment rigging australia, stage truss manufacturers, F34 DNA, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, GT F34L300, Lighting Grid, entertainment rigging companies, stage truss systems, DNA F34, truss, Space Frame, lighting clamps, Prolyte, Truss Australia, rigger course, box global truss, Lighting Bar, event rigging, stage trusses, F34-50 F, global truss, Touring Truss, lighting trigger clamps, Bolt Truss, audio brisbane, rigging, box global, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, fd34, 300mm Truss, box truss design, stage design, DNA, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, global truss f34, Plus Truss, design quintessence, stage light trusses, Helix truss, Circus Truss, global truss catalog, titanav, stage lighting truss, Truss Hinge, lighting truss parts, curved truss, Alloy Truss, dj city, stage lighting mounting bars, twisty truss, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, Aluminium Truss, dq, stage lighting rig, curve truss, Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, 290 Box Truss, Steel Truss, entertainment lighting, stage lighting truss design, decorative, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses, 290 Square Truss, Concert Truss, entertainment production, stage lighting trusses, decotruss, Flat Truss, global truss for sale, truss plate, Couplers, phantos, X30V

Additional information

Tube Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 2mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	2550
External Depth (mm)	400
External Height (mm)	400
Cubic volume (m³)	0.430336
Product Type	Linear
