F34 Square Truss 2 Way 90° Curved (500mmR) Corner with Spigots, Pins & R-Clips

F34 Square Truss 2 Way 60° Corner with Spigots, Pins & R-Clips

F34 Square Truss 2 Way 90° Curved (500mmR) Corner with Spigots, Pins & R-Clips

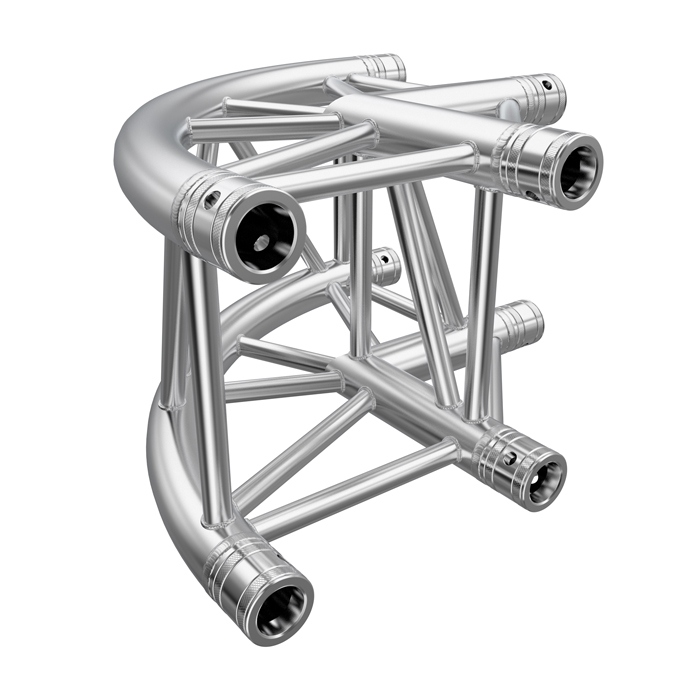

Name: F34 Square Truss 2 Way 90° Curved (500mmR) Corner with Spigots, Pins &amp; R-Clips
SKU: GT-F34J21-S
Availability: InStock

SKU: GT-F34J21-S

F34 Square Truss is the staple of the Global Truss diet. It is 290mm x 290mm Truss with 50mmø (x 2mm/3mm) chords and is easily the most commonly used Truss across all applications.

Extremely popular to the professional lighting and audiovisual production industries thanks to its extraordinary versatility and broad modularity, F34 Truss is put to use in a wide variety of permanent and temporary installations in schools, theatres, exhibition halls, conference centres, houses of worship, universities, museums, retail centres and sporting centres etc. Applications vary from stage structures, LED screen frames, outdoor signage, virtual reality structures, fitness course structures, film & television sets and studios, brand reinforcement structures, display stand structures, art and museum exhibit structures, and suspending lighting, sound and video gear.

F34 Truss has the widest range of standard lengths, radials and junctions of the entire Global Truss range, but custom components can be designed by the DQ team and made to order.

Product: GT-F34J21-S Categories: F34 Square Truss Junctions, F34 Square Truss, Global Truss Tags: Truss Grid, entertainment production, stage lighting trusses, scaffolding, gorilla scaffold, scaffolding rental, mobile aluminium scaffolding for sale, buy mobile scaffold, truss, Theatre Truss, global truss for sale, truss plate, kwikstage scaffolding, scaffolding hire, scaffolding hire rates, mobile scaffold sydney, aluminium scaffold hire sydney, Cosmic Truss, Couplers, phantos, Box Truss 290, trestle scaffolding, buy scaffolding, scaffolding wheels for sale, cost for scaffolding rental, F34-2 Way 90° Curved, Lighting Grid, entertainment rigging, stage truss design, scaffolding for sale, gumtree scaffolding, buy scaffolding sydney, scaffold hire cost per week, aluminium scaffold components, global truss, Space Frame, global truss pinnex, truss structures, scaffold tower, mr scaffold, how much to hire scaffolding, how much does it cost for scaffolding, mobile scaffold hire price, Prolyte, DNA truss, pre-rig truss, box global truss, stair scaffold, scaffolding sydney, aluminum mobile scaffolding, folding scaffolding, Lighting Bar, entertainment rigging australia, stage truss manufacturers, mobile scaffold, db scaffolding, mr scaffold sydney, scaffolding installation cost, mobile scaffolding safety, stage truss, Touring Truss, light truss, when is a rigger required, mobile scaffold for sale, aluminium scaffold hire, how much to rent scaffolding, scaffolding caster wheel, hire painting scaffolding, Bolt Truss, Stage clamps, production, box global, mini scaffold, scaffolding companies melbourne, how much is it to hire scaffolding, average price for scaffolding, Truss Tube, entertainment rigging companies, stage truss systems, noise control, linc scaffolding, aluminium scaffold for sale sydney, scaffolding hire price list, aluminium scaffolding parts, alutruss, PRT, lighting clamps, access scaffolding, scaffolding for sale melbourne, how much does it cost to hire scaffolding, cost to buy scaffolding, aluminium scaffolding brisbane, 300mm Truss, Truss Australia, rigger course, a frame scaffold, scaffolding clamp, cheap scaffolding hire, cost of scaffolding house, Lighting Tube, event rigging, stage trusses, aluminum scaffolding, bayside scaffolding, mr scaffold melbourne, cost of scaffolding, mobile scaffolding parts, stage lighting truss, Truss Circle, lighting trigger clamps, fd34, sound proof fencing, scaffolding wheels, size 0 acrow props, 6 meter scaffold tower, cost to scaffold a house, Plus Truss, audio brisbane, rigging, aluminium scaffolding for sale, scaffold hire perth, scaffolding for sale sydney, aluminium folding scaffold, Circus Truss, global truss accessories, store dj, scaffolding companies, aluminium mobile scaffold, mr scaffold wetherill park, how much does a scaffold cost, cost of scaffolding per metre, square truss, Truss Hinge, lighting truss australia, global truss f34, noise barrier, acrow prop sizes, how much scaffolding cost, acrow size 0, Alloy Truss, box truss design, stage design, painters scaffold, scaffolding parts, scaffold castor wheels, buy aluminium scaffold, Custom Truss Box Truss, global truss australia, theatre rigging, portable scaffolding, instant access scaffold, mr scaffold wetherill park nsw, portable scaffolding for sale, how much does scaffolding cost to buy, global truss clamps, Tent Truss, lighting truss dj, scaffolding platform, scaffold hire sydney, how much scaffolding hire cost, aluminum scaffolding for sale, Aluminium Truss, design quintessence, stage light trusses, modular scaffold, scaffolding erection, scaffold beam clamp, how much does scaffolding cost per week, Tri Truss, global truss catalog, titanav, scaffolding types, temporary enclosures, scaffold hire prices, scaffolding cost per day, mobile scaffold hire rates, stage lighting truss systems, lighting truss parts, roof scaffolding, mobile scaffold hire, how much does scaffolding cost to hire, mobile aluminum scaffolding, Steel Truss, dj city, stage lighting mounting bars, acoustic fence panels, scaffold hire adelaide, how to price scaffolding, mobile scaffold hire sydney, Triangular Truss, global truss distributor, titanav truss, acoustic fencing, construction scaffolding, scaffolding hire cost, house scaffolding hire, scaffolding cost calculator, lighting truss system price list, 290 Box Truss, scaffolding supplies, scaffolding melbourne, mobile scaffold wheels, average cost of scaffolding, Concert Truss, dq, stage lighting rig, building scaffold, scaffolding components, mobile scaffold platform, brace scaffolding, Flat Truss, global truss f34 load data, truss coupler clamp, scaffolding ladder, active noise control, how much does scaffolding cost, scaffold castors, estimating scaffolding costs, 50mm truss clamp, lighting truss with lights, 290 Square Truss, quick stage scaffold, scaffold hire melbourne, aluminium scaffold melbourne, mobile scaffold wheels for sale, AV Truss, entertainment lighting, stage lighting truss design, acrow scaffolding, scaffolding for sale perth, price for scaffolding rental, light duty scaffold, lighting truss, Ladder Truss, global truss f44, truss lighting systems, scaffolding ticket, sound barrier fence, scaffolding rental cost, adjustable scaffold wheels, double coupler, globaltruss, Clamps, lighting trusses, X30V, cantilever scaffolding, scaffold hire brisbane, scaffolding for sale brisbane, how much does scaffolding cost per day, GT F34J21-S

F34 Square (2mm) Truss Information Sheet

Download

	Title	Type	Size
	F34-SQUARE-TRUSS_1 F34 Truss Load Tables & TÜV Engineering Certificate	application/pdf	1 MB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 2mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	500
External Height (mm)	290
Pack Length	5100
Pack Depth	5100
Pack Height	3100
Net weight of the product (kg)	5.9
Pack Weight	8
Cubic volume (m³)	80.631
Product Type	Junctions
