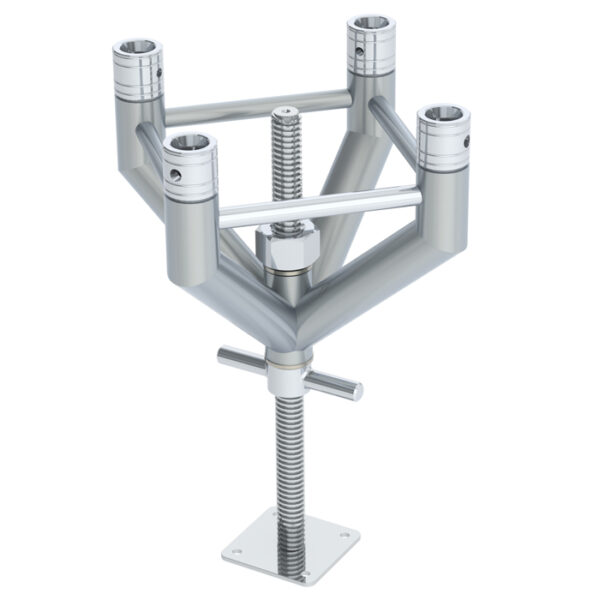

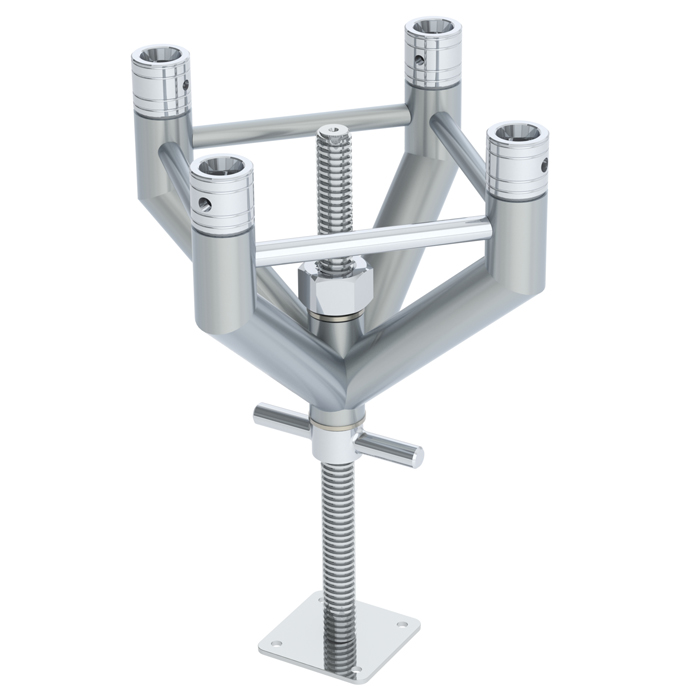

F34P Truss Spindle Junction for Column Base including Spigots, Pins & R-Clips (615mm-780mm Adjustable Height)

SKU: GT-F34PJSPIND-ADJ

Global Truss

• Made from strong aluminium with 3 mm wall thickness chords (50 mmØ) for enhanced load capacity and durability
• Adjustable height spindle junction, ranging from 615mm to 780mm for versatile column base setups
• Equipped with secure pinned conical spigot connections, pins, and R-clips for quick and reliable assembly
• TÜV-certified to guarantee compliance with international safety and quality standards
• Fully compatible with the F34P truss system for flexible modular construction

External Length (mm)

External Depth/Width (mm)

External Height (mm)

290

Finish

Raw

Load Capacity (kg)
Truss Style (mm)



Chord Style (mm)

Square

Diameter (mm)
Pack Length (m)

610

Pack Depth (m)

300

Pack Height (m)

300

Pack Weight (kg)



Net Weight (kg)
Product Type

Junction

Bracing Dimensions (mm)

50mmØ x 2mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F34PJSPIND-ADJ Categories: , , Brand:

Description

The F34P Truss Spindle Junction for Column Base is a robust, adjustable-height junction designed to provide a stable and secure base for column structures within the F34P truss system. Crafted from high-quality aluminium with 50 mmØ main chords and 3 mm wall thickness, this spindle junction ensures excellent strength and durability while maintaining lightweight portability.

Its height-adjustable design (from 615mm to 780mm) offers flexibility to accommodate varying structural requirements and leveling needs on uneven surfaces. The junction features reliable pinned conical spigot connections, along with durable pins and R-clips for fast, safe, and secure assembly and disassembly.

TÜV-certified for quality and safety, the F34P Spindle Junction integrates seamlessly with the comprehensive F34P truss range, supporting a wide array of permanent and temporary stage, exhibition, and event structures.
