F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

F35 3.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

Name: F35 3.5m 5-Chord Square Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F35L350
Availability: InStock

SKU: GT-F35L350

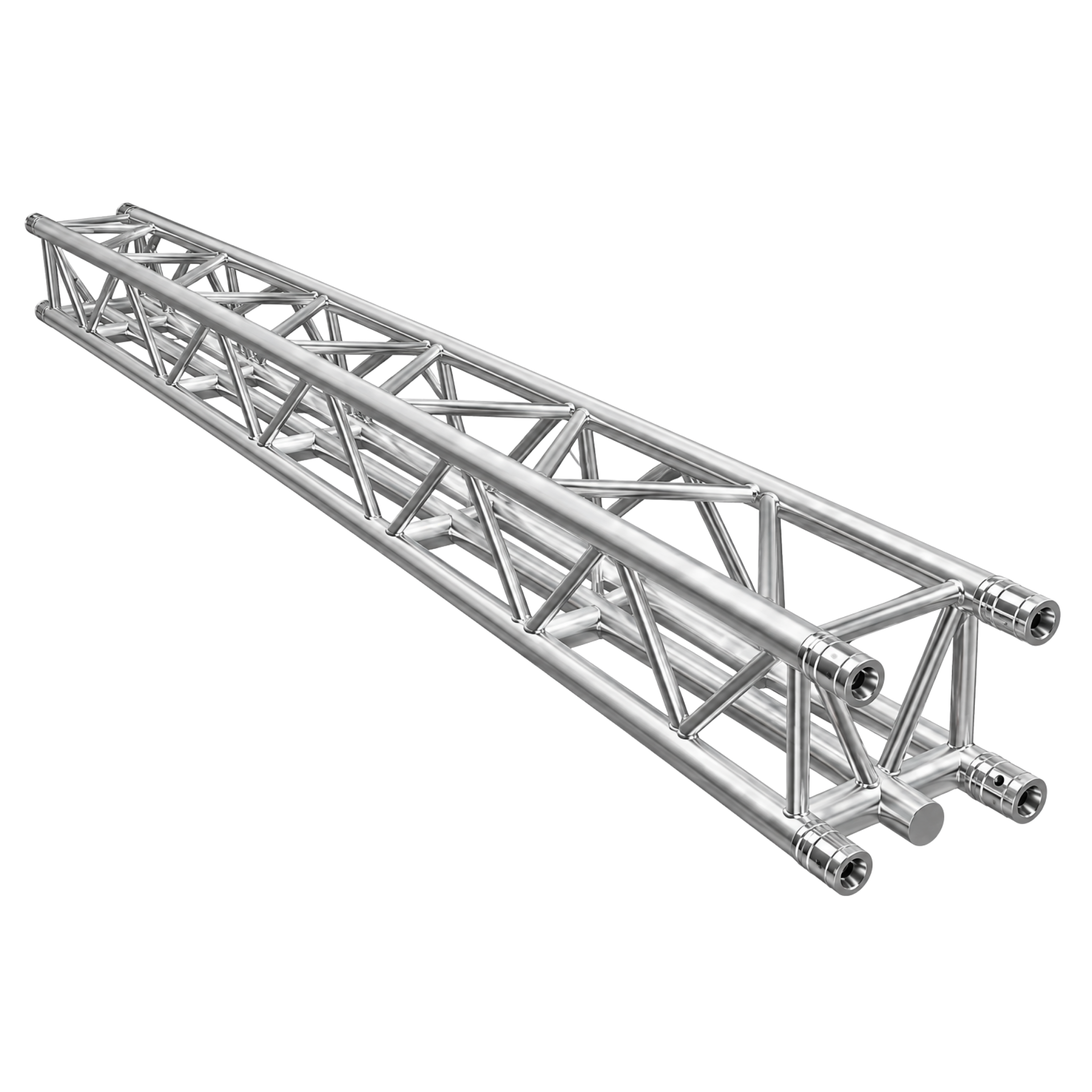

F35 Truss is the smallest of the 5-Chord Truss family at 290mm x 290mm with 50mmø chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords.

It is particularly focused on the suspension of smaller LED screens where a long, continuous load must be centred with very little or no deflection. F35 Truss uses a thicker wall at 4mm to provide a stronger solution with lower deflection. The fifth chord is also ideal for suspension of drapes or set pieces. Of course, F35 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords.

Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more applicable for the suspension of LED screens.

Product: GT-F35L350 Categories: F35 5-Chord Truss, Global Truss Tags: entertainment rigging companies, stage truss systems, scaffolding types, temporary enclosures, scaffold hire prices, scaffolding cost per day, mobile scaffold hire rates, stage lighting truss, lighting clamps, roof scaffolding, mobile scaffold hire, how much does scaffolding cost to hire, mobile aluminum scaffolding, LED Structure, Truss Australia, rigger course, acoustic fence panels, scaffold hire adelaide, how to price scaffolding, mobile scaffold hire sydney, event rigging, stage trusses, acoustic fencing, construction scaffolding, scaffolding hire cost, house scaffolding hire, scaffolding cost calculator, global truss clamps, lighting trigger clamps, scaffolding supplies, scaffolding melbourne, mobile scaffold wheels, average cost of scaffolding, Ground Support, audio brisbane, rigging, building scaffold, scaffolding components, mobile scaffold platform, brace scaffolding, global truss accessories, store dj, scaffolding ladder, active noise control, how much does scaffolding cost, scaffold castors, estimating scaffolding costs, stage lighting truss systems, lighting truss australia, quick stage scaffold, scaffold hire melbourne, aluminium scaffold melbourne, mobile scaffold wheels for sale, F35-50 F, box truss design, stage design, acrow scaffolding, scaffolding for sale perth, price for scaffolding rental, light duty scaffold, global truss australia, theatre rigging, scaffolding ticket, sound barrier fence, scaffolding rental cost, adjustable scaffold wheels, double coupler, lighting truss dj, box global truss, cantilever scaffolding, scaffold hire brisbane, scaffolding for sale brisbane, how much does scaffolding cost per day, GT F35L350, design quintessence, stage light trusses, scaffolding, gorilla scaffold, scaffolding rental, mobile aluminium scaffolding for sale, buy mobile scaffold, global truss catalog, titanav, kwikstage scaffolding, scaffolding hire, scaffolding hire rates, mobile scaffold sydney, aluminium scaffold hire sydney, Cosmic Truss, lighting truss parts, box global, trestle scaffolding, buy scaffolding, scaffolding wheels for sale, cost for scaffolding rental, dj city, stage lighting mounting bars, scaffolding for sale, gumtree scaffolding, buy scaffolding sydney, scaffold hire cost per week, aluminium scaffold components, global truss distributor, titanav truss, scaffold tower, mr scaffold, how much to hire scaffolding, how much does it cost for scaffolding, mobile scaffold hire price, Aluminium Truss, lighting truss system price list, Truss Structure, stair scaffold, scaffolding sydney, aluminum mobile scaffolding, folding scaffolding, dq, stage lighting rig, mobile scaffold, db scaffolding, mr scaffold sydney, scaffolding installation cost, mobile scaffolding safety, global truss f34 load data, truss coupler clamp, mobile scaffold for sale, aluminium scaffold hire, how much to rent scaffolding, scaffolding caster wheel, hire painting scaffolding, 50mm truss clamp, lighting truss with lights, mini scaffold, scaffolding companies melbourne, how much is it to hire scaffolding, average price for scaffolding, entertainment lighting, stage lighting truss design, noise control, linc scaffolding, aluminium scaffold for sale sydney, scaffolding hire price list, aluminium scaffolding parts, led screen, global truss f44, truss lighting systems, access scaffolding, scaffolding for sale melbourne, how much does it cost to hire scaffolding, cost to buy scaffolding, aluminium scaffolding brisbane, Clamps, lighting trusses, a frame scaffold, scaffolding clamp, cheap scaffolding hire, cost of scaffolding house, entertainment production, stage lighting trusses, aluminum scaffolding, bayside scaffolding, mr scaffold melbourne, cost of scaffolding, mobile scaffolding parts, lighting truss, global truss for sale, truss plate, sound proof fencing, scaffolding wheels, size 0 acrow props, 6 meter scaffold tower, cost to scaffold a house, Couplers, phantos, aluminium scaffolding for sale, scaffold hire perth, scaffolding for sale sydney, aluminium folding scaffold, entertainment rigging, stage truss design, scaffolding companies, aluminium mobile scaffold, mr scaffold wetherill park, how much does a scaffold cost, cost of scaffolding per metre, global truss, global truss pinnex, truss structures, noise barrier, acrow prop sizes, how much scaffolding cost, acrow size 0, DNA truss, pre-rig truss, painters scaffold, scaffolding parts, scaffold castor wheels, buy aluminium scaffold, entertainment rigging australia, stage truss manufacturers, portable scaffolding, instant access scaffold, mr scaffold wetherill park nsw, portable scaffolding for sale, how much does scaffolding cost to buy, stage truss, light truss, when is a rigger required, scaffolding platform, scaffold hire sydney, how much scaffolding hire cost, aluminum scaffolding for sale, Screen Structure, Stage clamps, production, modular scaffold, scaffolding erection, scaffold beam clamp, how much does scaffolding cost per week

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	678	508
6.0	337	800	800	653	506
7.0	288	800	737	562	446
8.0	250	800	656	493	393
9.0	202	800	589	437	350
10.0	162	745	533	391	314
11.0	126	674	485	353	284
12.0	94	614	416	298	234
13.0	72	561	343	246	193
14.0	55	484	284	204	160
15.0	43	402	236	169	133
16.0	33	334	196	141	110
17.0	26	276	162	116	91
18.0	20	227	133	95	75
19.0	15	184	108	77	61
20.0	12	146	86	61	48
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	625	491
6.0	270	800	595	427	335
7.0	166	726	426	306	240
8.0	108	538	316	226	178
9.0	72	406	239	171	134
10.0	50	310	182	131	103
11.0	35	237	139	100	79
12.0	24	180	106	76	60
13.0	17	134	79	57	44
14.0	11	97	57	41	32
15.0	7	65	38	27	21
16.0	4	37	22	16	12
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4	511	1,694	1,021	681	511
5	407	1,416	960	678	508
6	337	1,210	836	653	506
7	288	1,053	737	562	446
8	250	929	656	493	393
9	202	828	589	437	350
10	162	745	533	391	314
11	126	674	485	353	284
12	94	614	416	298	234
13	72	561	343	246	193
14	55	484	284	204	160
15	43	402	236	169	133
16	33	334	196	141	110
17	26	276	162	116	91
18	20	227	133	95	75
19	15	184	108	77	61
20	12	146	86	61	48
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 4mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	3500
External Depth (mm)	290
External Height (mm)	290
Cubic volume (m³)	0.3159
