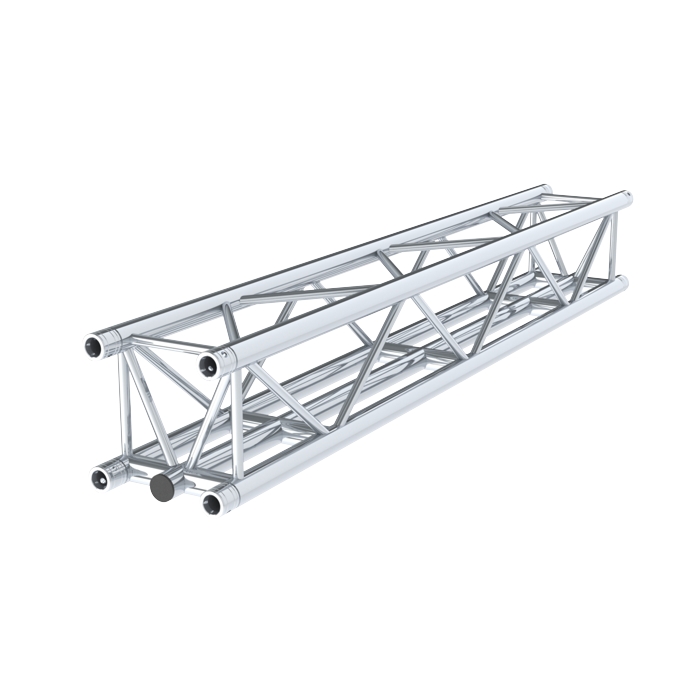

F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

F35 4.0m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

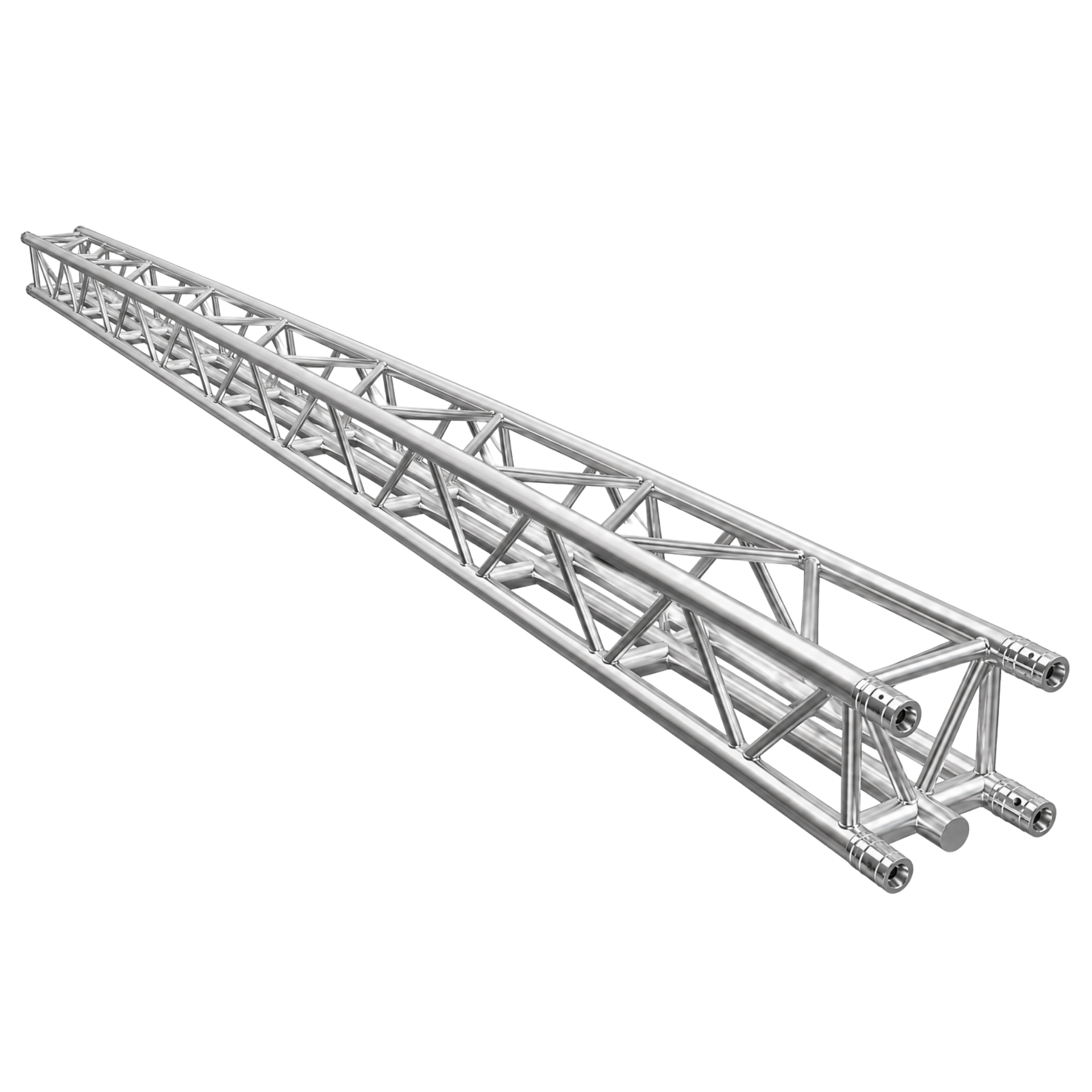

Name: F35 4.0m 5-Chord Square Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F35L400
Availability: InStock

SKU: GT-F35L400

F35 Truss is the smallest of the 5-Chord Truss family at 290mm x 290mm with 50mmø chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords.

It is particularly focused on the suspension of smaller LED screens where a long, continuous load must be centred with very little or no deflection. F35 Truss uses a thicker wall at 4mm to provide a stronger solution with lower deflection. The fifth chord is also ideal for suspension of drapes or set pieces. Of course, F35 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords.

Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more applicable for the suspension of LED screens.

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	678	508
6.0	337	800	800	653	506
7.0	288	800	737	562	446
8.0	250	800	656	493	393
9.0	202	800	589	437	350
10.0	162	745	533	391	314
11.0	126	674	485	353	284
12.0	94	614	416	298	234
13.0	72	561	343	246	193
14.0	55	484	284	204	160
15.0	43	402	236	169	133
16.0	33	334	196	141	110
17.0	26	276	162	116	91
18.0	20	227	133	95	75
19.0	15	184	108	77	61
20.0	12	146	86	61	48
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	625	491
6.0	270	800	595	427	335
7.0	166	726	426	306	240
8.0	108	538	316	226	178
9.0	72	406	239	171	134
10.0	50	310	182	131	103
11.0	35	237	139	100	79
12.0	24	180	106	76	60
13.0	17	134	79	57	44
14.0	11	97	57	41	32
15.0	7	65	38	27	21
16.0	4	37	22	16	12
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4	511	1,694	1,021	681	511
5	407	1,416	960	678	508
6	337	1,210	836	653	506
7	288	1,053	737	562	446
8	250	929	656	493	393
9	202	828	589	437	350
10	162	745	533	391	314
11	126	674	485	353	284
12	94	614	416	298	234
13	72	561	343	246	193
14	55	484	284	204	160
15	43	402	236	169	133
16	33	334	196	141	110
17	26	276	162	116	91
18	20	227	133	95	75
19	15	184	108	77	61
20	12	146	86	61	48
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 4mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	4000
External Depth (mm)	290
External Height (mm)	290
Cubic volume (m³)	0.3609
