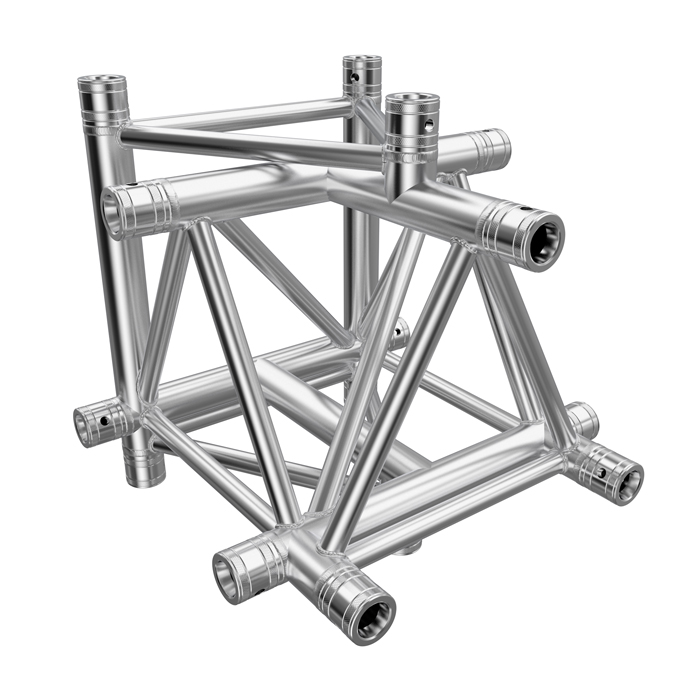

F43P Tri Truss 5 Way Horizontal T- to Vertical Junction (Apex Up/Down) with Spigots, Pins & R-Clips
SKU: GT-F43PJ51F43P Triangular Truss is a heavier-duty truss with an outside dimension of 40mm and 50mmø chords. The types of venues and buildings in which it is used include houses of worship, schools, theatres, pubs and clubs, and conference centres. Application types indoor and outdoor structures, display stands, signage and banner frames, suspend lighting and AV equipment and LED panels, suspend drapes etc. The advantage of Triangular Truss over Square Truss is the ease of achieving a balanced weight distribution when suspending your items from the central (ie apex down) chord. In addition, the range assures versatility in the number of straight lengths, junctions and radials that are available as standard and, of course, all the 50mmø accessories at your fingertips. Custom components can be designed by the DQ team and made to order.
F43P Triangular Truss Truss Information Sheet
DownloadF43P Triangular Truss Load Tables & Engineering Report
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 877 | 410 |
5.0 | 721 | 322 |
6.0 | 609 | 224 |
7.0 | 525 | 164 |
8.0 | 459 | 124 |
9.0 | 407 | 97 |
10.0 | 363 | 77 |
11.0 | 326 | 63 |
12.0 | 294 | 52 |
13.0 | 267 | 43 |
14.0 | 243 | 36 |
15.0 | 221 | 31 |
16.0 | 202 | 26 |
17.0 | 184 | 23 |
18.0 | 168 | 19 |
19.0 | 153 | 17 |
20.0 | 139 | 14 |
Title | Type | Size | |
---|---|---|---|
F43P-TRI-TRUSS_1 | application/pdf | 2 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
Pack Weight |
