F45 5-Chord Truss Dolly for 1.0m Linear Truss Complete

Name: F45 5-Chord Truss Dolly for 1.0m Linear Truss Complete
SKU: GT-F45DOLL-L100
Availability: InStock

SKU: GT-F45DOLL-L100

Truss designs have been an integral part of our business and understanding the needs of our clients is a standard practice at Design Quintessence. Using our combined extensive industry experience and expertise, we are able to provide innovative solutions that can go to production directly out of R&D stage.

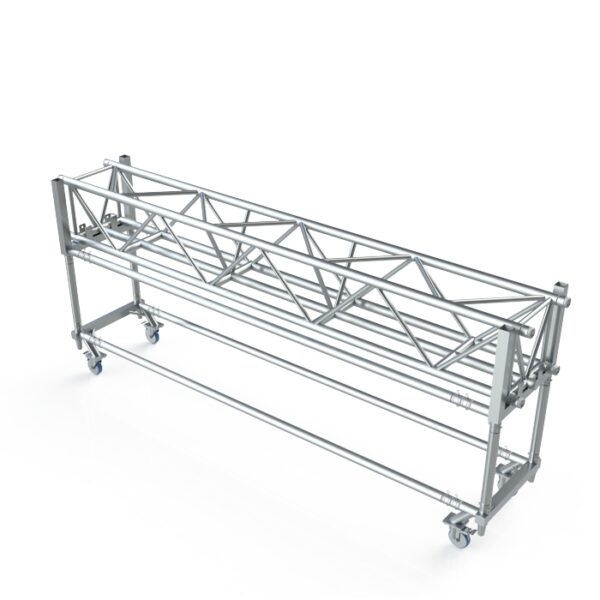

Recently, we have recently developed a new line of quality pre-rig truss dollies from Global Truss to the Australian market. Built using standard off-the-shelf F01 Tubes and specially designed aluminium end frames, its rigid structure allows for easy loading and unloading of your F45 truss.

Easily transform your existing, or new, line of F45 5 Chord Truss into a pre-rig system!

Product: GT-F45DOLL-L100 Categories: Global Truss, F45 5 Chord Truss Tags: Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, Truss Structure, Steel Truss, entertainment lighting, stage lighting truss design, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses, Truss Rig, Concert Truss, entertainment production, stage lighting trusses, Flat Truss, global truss for sale, truss plate, Couplers, phantos, 5 Chord Truss, AV Truss, entertainment rigging, stage truss design, Ladder Truss, global truss pinnex, truss structures, globaltruss, DNA truss, pre-rig truss, 5 Chord, Truss Grid, entertainment rigging australia, stage truss manufacturers, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, GT PR64L122, Lighting Grid, entertainment rigging companies, stage truss systems, truss, Space Frame, lighting clamps, rig, Prolyte, Truss Australia, rigger course, Lighting Bar, event rigging, stage trusses, global truss, Touring Truss, lighting trigger clamps, pre rig, Bolt Truss, audio brisbane, rigging, F45-00 Dolly, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, F45, 300mm Truss, box truss design, stage design, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, Rigging Truss, Plus Truss, design quintessence, stage light trusses, Circus Truss, global truss catalog, titanav, stage lighting truss, Truss Hinge, lighting truss parts, Set Truss, Alloy Truss, dj city, stage lighting mounting bars, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, Moving Head Truss, Aluminium Truss, dq, stage lighting rig

F45 5 Chord Square Truss Load Table & Engineering Report

Download

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	600	500	500	500	500
5.0	600	500	500	500	500
6.0	600	500	500	500	500
7.0	473	500	500	500	500
8.0	365	500	500	500	500
9.0	289	500	500	500	480
10.0	234	500	500	500	434
11.0	192	500	500	500	395
12.0	160	500	500	456	361
13.0	135	500	500	418	332
14.0	115	500	500	384	306
15.0	99	500	476	354	283
16.0	79	500	443	327	261
17.0	63	500	395	283	223
18.0	51	500	337	242	190
19.0	41	489	287	206	162
20.0	33	415	243	175	137
21.0	27	350	205	147	116
22.0	21	292	171	123	97
23.0	17	241	141	101	80
24.0	13	194	114	82	64
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	600	500	500	500	500
5.0	600	500	500	500	500
6.0	578	500	500	500	500
7.0	358	500	500	500	500
8.0	235	500	500	495	389
9.0	161	500	500	381	299
10.0	113	500	415	298	234
11.0	81	500	328	235	185
12.0	59	444	261	187	147
13.0	43	353	207	149	117
14.0	32	279	163	117	92
15.0	23	217	127	91	72
16.0	16	164	96	69	54
17.0	11	119	70	50	39
18.0	7	80	47	34	27
19.0	4	46	27	19	15
20.0	1	15	9	6	5
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection***)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	953	2,209	1,358	1,042	859
5.0	760	1,879	1,193	931	778
6.0	631	1,629	1,057	837	684
7.0	473	1,434	945	757	601
8.0	365	1,276	853	689	534
9.0	289	1,146	774	614	480
10.0	234	1,037	707	553	434
11.0	192	944	649	501	395
12.0	160	864	598	456	361
13.0	135	793	552	418	332
14.0	115	731	512	384	306
15.0	99	675	476	354	283
16.0	79	625	443	327	261
17.0	63	580	395	283	223
18.0	51	539	337	242	190
19.0	41	489	287	206	162
20.0	33	415	243	175	137
21.0	27	350	205	147	116
22.0	21	292	171	123	97
23.0	17	241	141	101	80
24.0	13	194	114	82	64
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.
