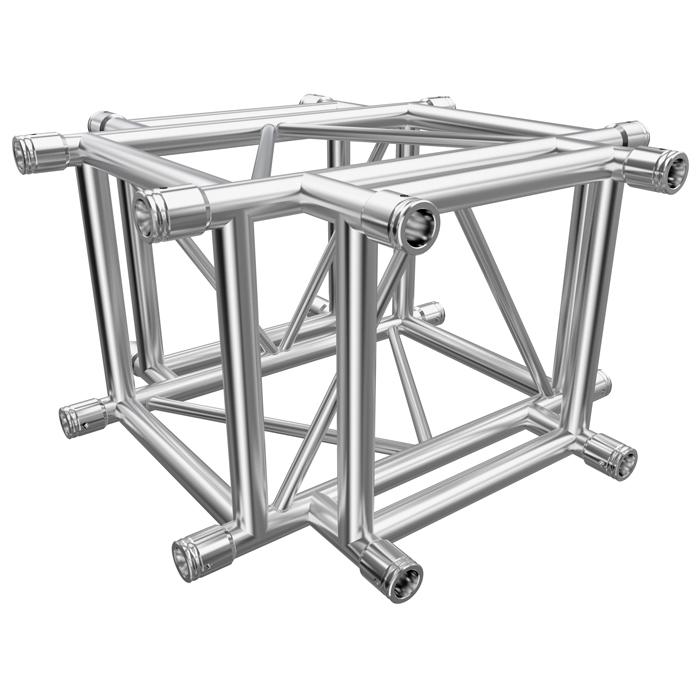

F54 Square Truss 4 Way X-Junction with Spigots, Pins & R-Clips

SKU: GT-F54J41

F54 Spare Truss at 520mmx 520mm is of a size long referred to as Concert Truss in Australia. And yes, it is a truss that is commonly used in concert stages but it has its applications wherever large spaces are prescribed. These include large format signage, race finish line aches and exhibition rigging to name a few. Capable of spans up to 24m, F54 Truss offers high capacity for shorter spans and quite reasonable capacity for large spans.

F54 Square Truss comes in two formats – one with 30mmø x 3mm diagonal braces on all four faces and the other, with 30mmø x 3mm diagonal braces on two opposing faces and 50mmø x 4mm “ladder” style cross-brace on the other two.

Product: GT-F54J41 Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

F54 Square Truss Load Tables & TÜV Engineering Certificate

Download
