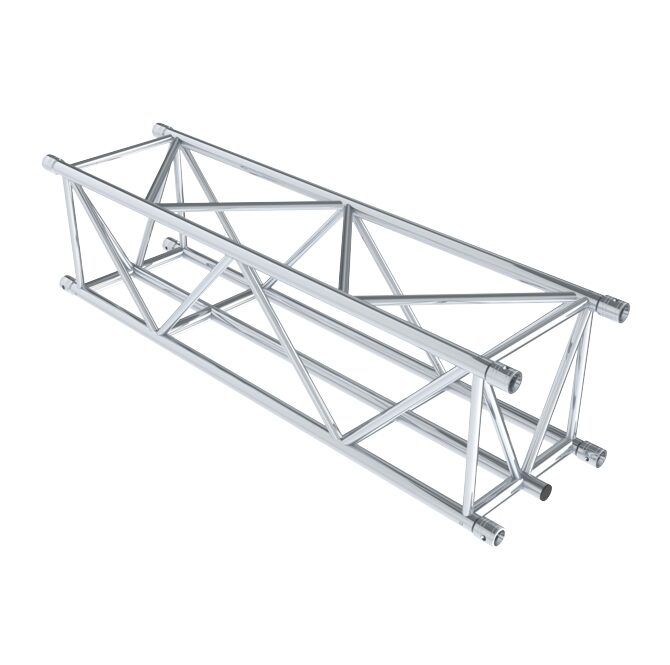

F55 4.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F55L450

Global Truss

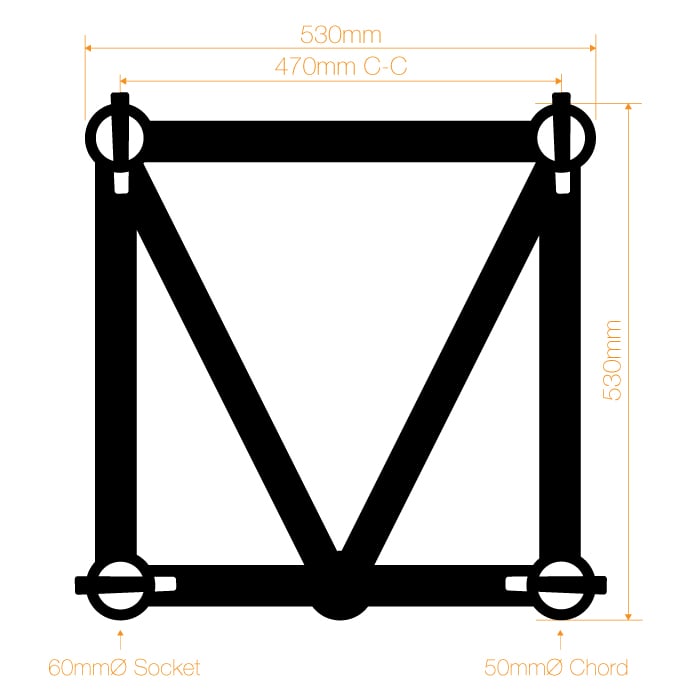

• Largest 5-Chord truss at 520mm x 520mm with robust 50mmø x 4mm chords
• Fifth chord improves load centring, reducing deflection for suspended loads

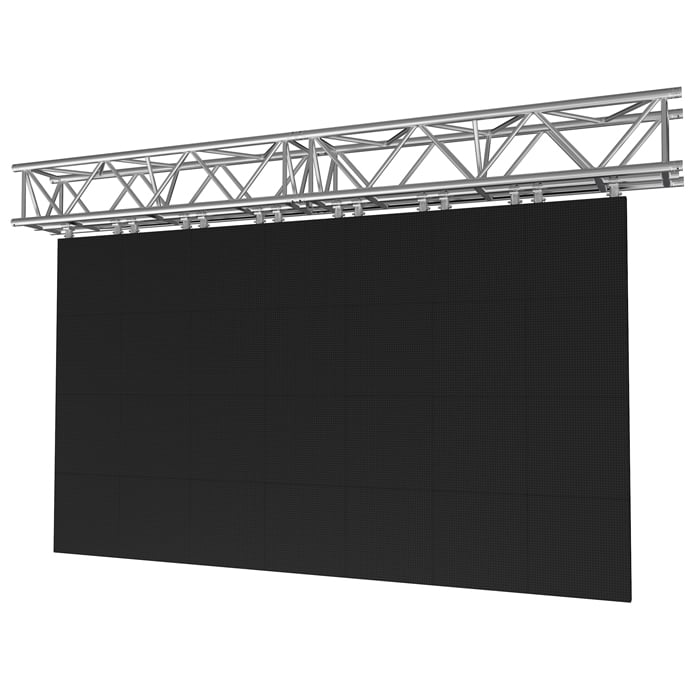

• Ideal for heavy loads such as large LED screens, drapes, and set pieces

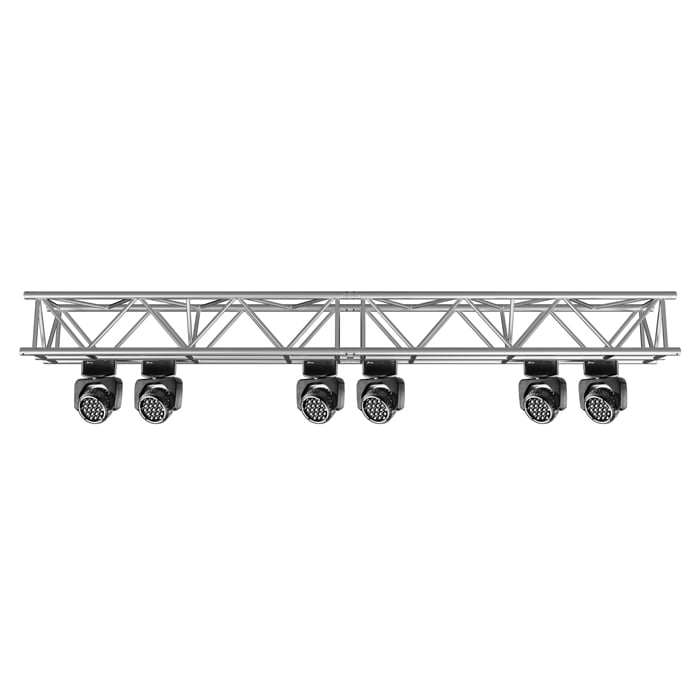

• Suitable for general truss applications utilizing all three bottom chords
• Comes with two engineering load tables for standard and LED screen deflection limits

Add to Quote Request
External Length (mm)

External Depth/Width (mm)

External Height (mm)

530
Finish

Raw
Load Capacity (kg)
Truss Style (mm)

520
Chord Style (mm)

5 Chord Square
Diameter (mm)
Pack Length (m)

4520
Pack Depth (m)

550
Pack Height (m)

550
Pack Weight (kg)


Net Weight (kg)
Product Type

Linear
Bracing Dimensions (mm)

50mmØ x 4mm
Chord Dimensions

25mmØ x 3mm
SKU: GT-F55L450 Categories: , , Brand:

Description

F55 Truss is the largest of the 5-Chord Truss family at 520mm x 520mm with 50mmø x 4mm chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords. It is particularly focused on the suspension of large LED screens where a long, continuous load must be centred with very little or no deflection. The fifth chord is also ideal for suspension of drapes, dividing walls or heavy set pieces. Of course, F45 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords. Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more application for the suspension of LED screens.

LOAD TABLE (Bottom Centre Chord ≤ 1:100 Deflection)*
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
[m][kg/m][kg][kg][kg][kg]
4.0400400400400400
5.0400400400400400
6.0400400400400400
7.0400400400400400
8.0400400400400400
9.0316400400400400
10.0253400400400400
11.0206400400400400
12.0171400400400400
13.0143400400400388
14.0121400400400353
15.0103400400388323
16.089400400356297
17.077400400327273
18.067400400301251
19.058400400277231
20.051400383256213
21.045400353235196
22.039400325217181
23.035399299199166
24.031366275183153
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications)
Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.
Full engineering report available upon request.
LOAD TABLE (Bottom Centre Chord ≤ 1:300 Deflection)**
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
[m][kg/m][kg][kg][kg][kg]
4.0400400400400400
5.0400400400400400
6.0400400400400400
7.0400400400400400
8.0400400400400400
9.0297400400400400
10.0212400400400400
11.0155400400400352
12.0115400400363285
13.087400400296233
14.066400338242190
15.050400276198155
16.038381224161126
17.029306180129101
18.02124114110180
19.0161841087861
20.011134795744
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications)
Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.
Full engineering report available upon request.
LOAD TABLE (Bottom Outer Chords ≤ 1:100 Deflection)***
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
[m][kg/m][kg][kg][kg][kg]
4.09832,3231,3881,020814
5.08282,0471,257941761
6.06741,8231,144870712
7.05331,6381,046806667
8.04041,483961749626
9.03161,352886698587
10.02531,238820633527
11.02061,135761567473
12.01711,025708512427
13.0143930661465388
14.0121848618424353
15.0103776578388323
16.089712534356297
17.077654491327273
18.067602452301251
19.058555416277231
20.051511383256213
21.045471353235196
22.039434325217181
23.035399299199166
24.031366275183153
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications)
Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.
Full engineering report available upon request.
