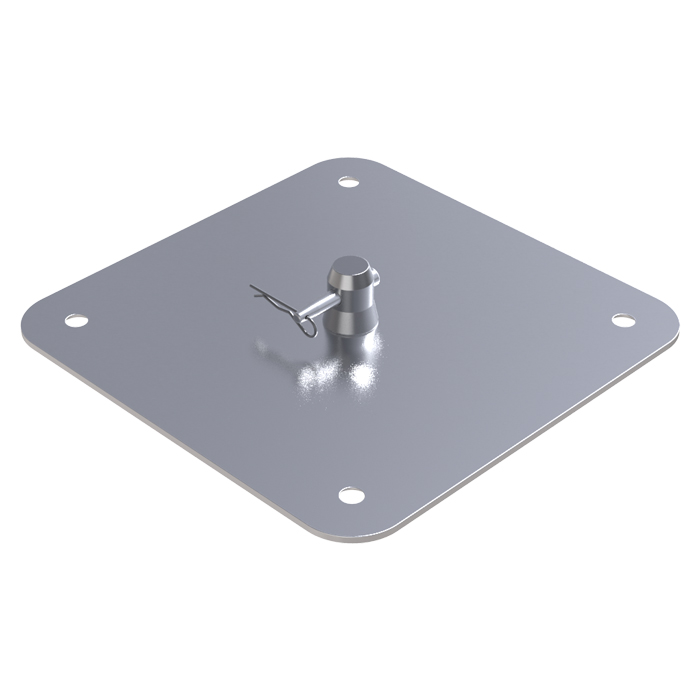

F01 Truss, Single Centre Hole, 310mm x 310mm x 5mm Square Aluminium Base Plate with Half-Spigots, Pins & R-Clips

SKU: GT-BP-F01A31

Global Truss

• Square aluminium base plate: 310mm x 310mm x 5mm thick
• Includes half-spigots, pins, and R-clips for secure connections
• Designed for use with 50mmø F01 tubes and accessories
• Ideal for modular frame construction, signage, and suspension grids
• Suitable for retail, theatre, school, and event production applications

External Length (mm)

External Depth/Width (mm)

External Height (mm)

350

Finish

Various

Load Capacity (kg)
Truss Style (mm)



Chord Style (mm)



Diameter (mm)
Pack Length (m)

320

Pack Depth (m)

320

Pack Height (m)

360

Pack Weight (kg)



Net Weight (kg)
Product Type

Base Plate

Bracing Dimensions (mm)



Chord Dimensions



SKU: GT-BP-F01A31 Categories: , Brand:

Description

The F01 Truss Single Centre Hole Aluminium Base Plate (310mm x 310mm x 5mm) is a versatile structural component designed to support and connect 50mmø F01 tubes in modular frame construction. Supplied with half-spigots, pins, and R-clips, this base plate facilitates quick, secure assembly for building frames, 3D forms, and suspension grids.

While not a traditional truss, the F01 system excels in applications requiring modularity and flexibility, such as retail displays, lightweight stage structures, signage frames, and rigging in theatres, schools, and event spaces. Its compatibility with a wide range of 50mmø accessories makes it ideal for creative and structural builds that demand precision and reliability.
