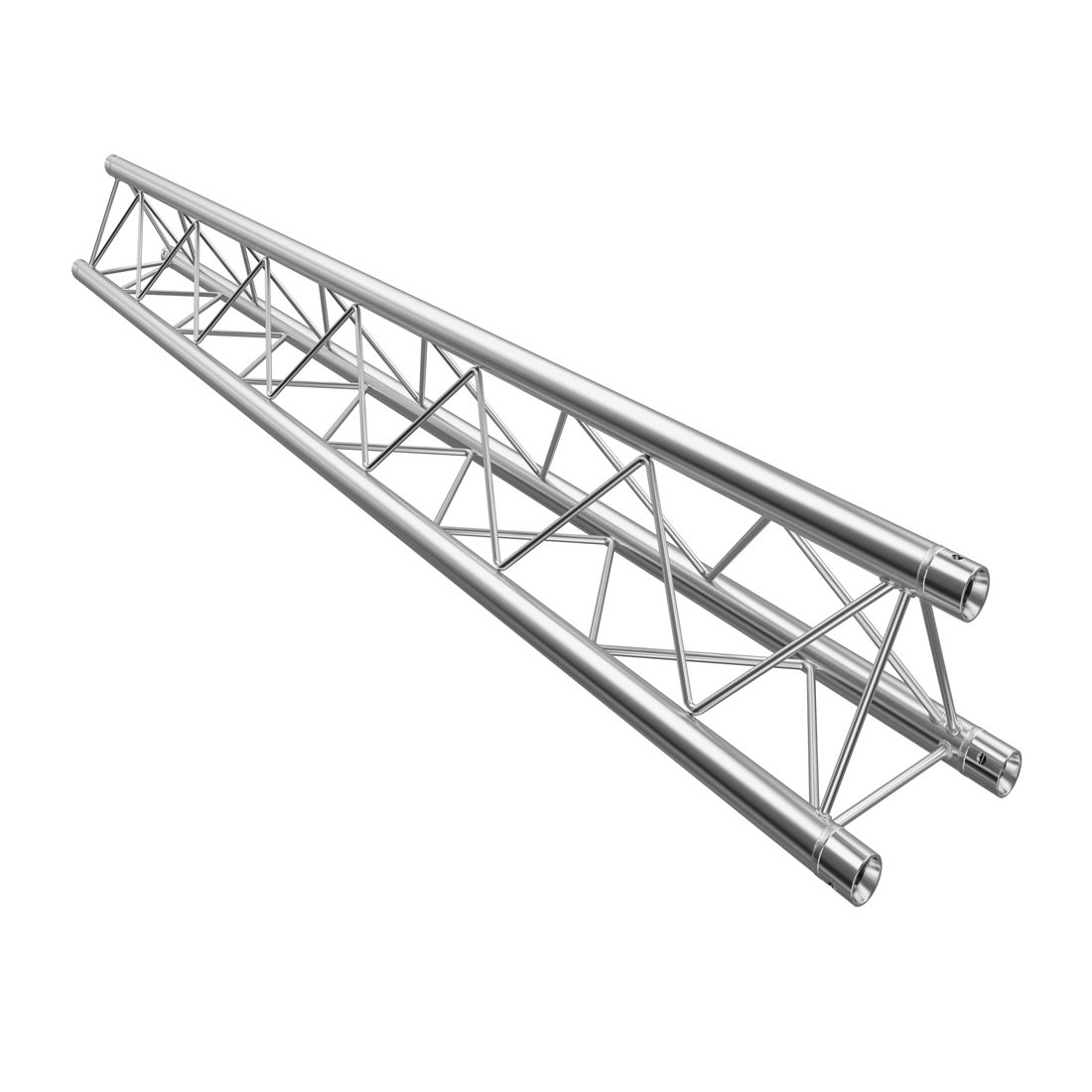

F23 Tri 0.25m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F23L025

Global Truss

• Light-duty triangular truss – 220 mm external dimension, 35 mmØ chords
• Ideal for space-restricted setups needing structural support
• Sleek, compact look – perfect for retail, exhibits, signage, and hospitality venues
• Available in straight lengths, radials, and junctions for versatile builds
• Compatible with 35 mmØ clamping accessories
• Custom components available – designed by DQ, made to order

External Length (mm)

External Depth/Width (mm)

External Height (mm)

195

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

220

Chord Style (mm)

Tri

Diameter (mm)
Pack Length (m)

280

Pack Depth (m)

263

Pack Height (m)

228

Pack Weight (kg)



Net Weight (kg)
Product Type

Linear

Bracing Dimensions (mm)

35mmØ x 1.6mm

Chord Dimensions

8mmØ Bar

SKU: GT-F23L025 Categories: , , Brand:

Description

F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.

F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.

A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
