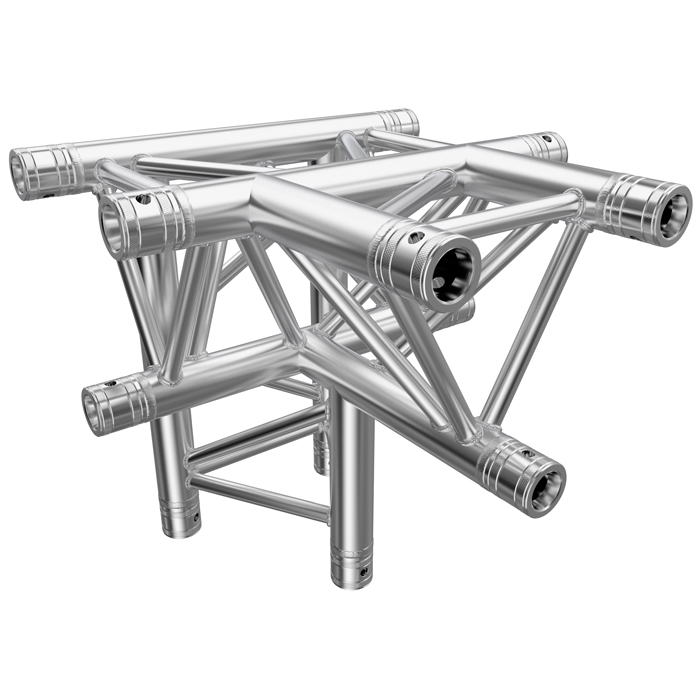

F33 Tri Truss 4 Way Horizontal T- to Vertical Junction (Apex Down) with Spigots, Pins & R-Clips
SKU: GT-F33J42F33 Triangular Truss is a medium-duty truss with an outside dimension of 290mm and 50mmø chords. With good strength and weight vs cost rations, F33 Truss offers significant bang for buck.
Ideally found in houses of worship, schools, clubs, theatres, pubs and clubs, conference centres, museums, exhibitions and retail centres. Application types include arches, entry structures, display stands, signage and banner frames, LED panel frames, suspend lighting and AV equipment, projection screen frames, suspend drapes, etc.
Versatility is assured by the range of straight lengths, junctions and radials on hand and, of course, all the 50mmø accessories at your fingertips.
Custom components can be designed by the DQ team and made to order.
Product: GT-F33J42
Categories: F33 Tri Truss Junctions, F33 Tri Truss, Global Truss
Tags: theatre rigging, Circus Truss, global truss australia, lighting truss dj, global truss clamps, Truss Hinge, stage light trusses, 290 Tri Truss, Alloy Truss, design quintessence, titanav, Custom Truss Box Truss, global truss catalog, lighting truss parts, stage lighting truss systems, Tent Truss, stage lighting mounting bars, 290 Triangular Truss, Aluminium Truss, dj city, titanav truss, Tri Truss, global truss distributor, lighting truss system price list, stage lighting rig, FD33, Steel Truss, dq, truss coupler clamp, Triangular Truss, global truss f34 load data, lighting truss with lights, 50mm truss clamp, stage lighting truss design, HD33, Concert Truss, entertainment lighting, truss lighting systems, lighting truss, Flat Truss, global truss f44, lighting trusses, Clamps, stage lighting trusses, X30D, AV Truss, entertainment production, truss plate, truss, Ladder Truss, global truss for sale, phantos, globaltruss, Couplers, stage truss design, H30D, Truss Grid, entertainment rigging, truss structures, global truss, Theatre Truss, global truss pinnex, pre-rig truss, Cosmic Truss, DNA truss, stage truss manufacturers, Lighting Grid, entertainment rigging australia, when is a rigger required, stage truss, Space Frame, light truss, production, Prolyte, Stage clamps, stage truss systems, GT F33J42, Lighting Bar, entertainment rigging companies, alutruss, Touring Truss, lighting clamps, rigger course, Bolt Truss, Truss Australia, stage trusses, F33 4 Way Horiz T- to Vert Junc -4 Way Horiz T- to Vert Junc, Truss Tube, event rigging, stage lighting truss, PRT, lighting trigger clamps, rigging, 300mm Truss, audio brisbane, store dj, Lighting Tube, global truss accessories, square truss, Truss Circle, lighting truss australia, stage design, Plus Truss, box truss design
Global Truss Manual
DownloadF33 Tri Truss Information Sheet
DownloadF33 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 438 | 238 |
5.0 | 354 | 152 |
6.0 | 296 | 105 |
7.0 | 253 | 76 |
8.0 | 219 | 57 |
9.0 | 192 | 45 |
10.0 | 170 | 35 |
11.0 | 151 | 29 |
12.0 | 136 | 23 |
13.0 | 122 | 19 |
14.0 | 109 | 16 |
15.0 | 99 | 14 |
16.0 | 89 | 11 |
17.0 | 80 | 10 |
18.0 | 72 | 8 |
Title | Type | Size | |
---|---|---|---|
F33-TRI-TRUSS_1 | application/pdf | 1 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Junctions |
