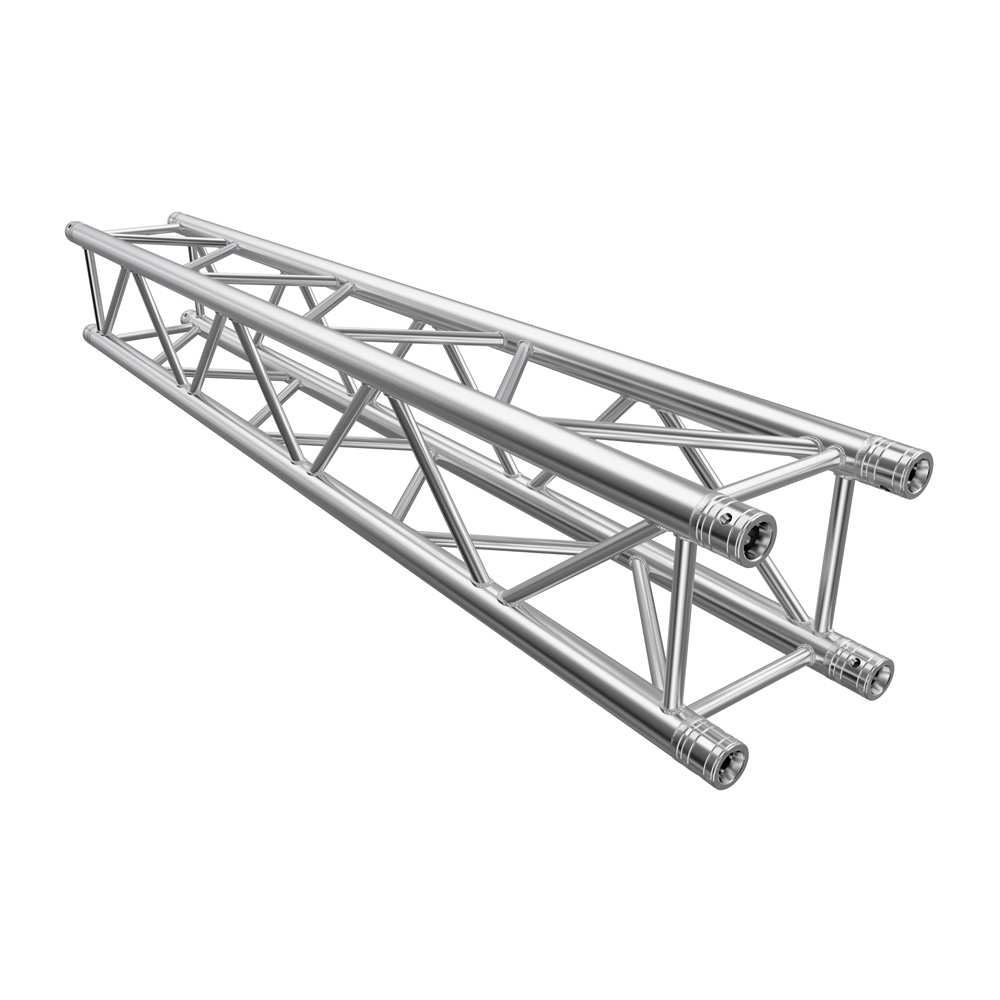

F34 Square 2.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F34L200F34 Square Truss is the staple of the Global Truss diet. It is 290mm x 290mm Truss with 50mmø (x 2mm/3mm) chords and is easily the most commonly used Truss across all applications.
Extremely popular to the professional lighting and audiovisual production industries thanks to its extraordinary versatility and broad modularity, F34 Truss is put to use in a wide variety of permanent and temporary installations in schools, theatres, exhibition halls, conference centres, houses of worship, universities, museums, retail centres and sporting centres etc. Applications vary from stage structures, LED screen frames, outdoor signage, virtual reality structures, fitness course structures, film & television sets and studios, brand reinforcement structures, display stand structures, art and museum exhibit structures, and suspending lighting, sound and video gear.
F34 Truss has the widest range of standard lengths, radials and junctions of the entire Global Truss range, but custom components can be designed by the DQ team and made to order.
F34 Square (2mm) Truss Information Sheet
DownloadF34 Square (2mm) Truss Load & TÜV Engineering Certificate
DownloadF34P Square (3mm) Truss Load & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 922 | 501 |
5.0 | 763 | 344 |
6.0 | 649 | 247 |
7.0 | 562 | 177 |
8.0 | 494 | 135 |
9.0 | 440 | 106 |
10.0 | 395 | 85 |
11.0 | 357 | 69 |
12.0 | 324 | 58 |
13.0 | 296 | 48 |
14.0 | 271 | 41 |
15.0 | 249 | 35 |
16.0 | 229 | 30 |
17.0 | 211 | 26 |
18.0 | 195 | 23 |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
