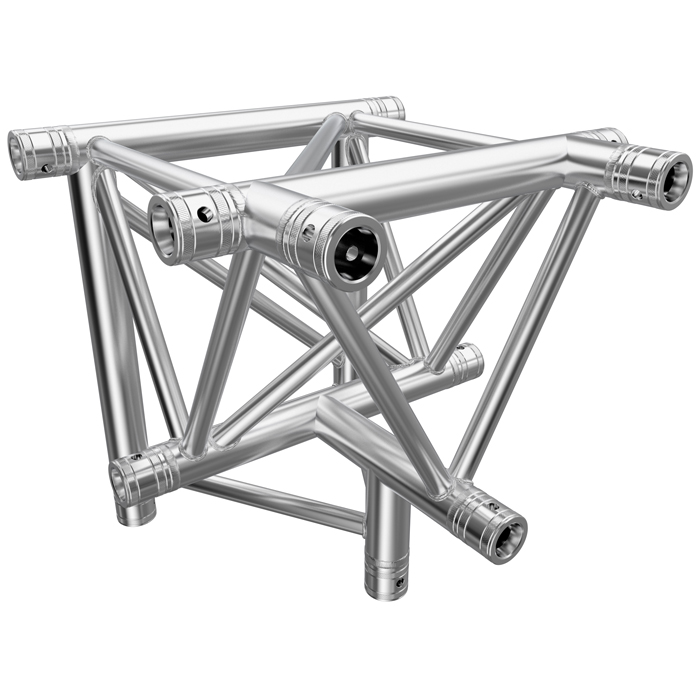

F43P Tri Truss 4 Way Horizontal T- to Vertical Junction (Apex Down) with Spigots, Pins & R-Clips
SKU: GT-F43PJ42
• Multiple standard angle variations: 30°, 45°, 60°, 90°, 120°, 135°, and 150° for versatile designs
• Optimized for balanced weight distribution in heavy-duty truss assemblies
• Suitable for theatres, schools, houses of worship, clubs, conference centres, and exhibition spaces
• Compatible with F43P straight truss lengths, radials (circle, arc, curved truss), and 50mmØ accessory systems
• TÜV certified for verified safety, manufacturing quality, and reliability
Description
The F43P Triangular Junctions are essential connection points within the F43P Triangular Truss system, designed to create strong, modular structures with precise angles and exceptional load distribution. These junctions feature the same robust 50mmØ main chords with reinforced 3mm wall thickness, ensuring durability and consistent quality across your truss builds.
Used widely in venues such as theatres, houses of worship, schools, conference centres, pubs, and clubs, F43P junctions support a wide variety of indoor and outdoor applications — including display stands, signage frames, LED panel suspensions, lighting rigs, and AV equipment mounts. Their triangular design offers a balanced weight distribution, making them highly efficient for complex structural assemblies.
Manufactured by Global Truss and TÜV certified for safety and quality assurance, these junctions integrate with F43P straight truss lengths, radials (curved, arc, and circle truss), and a broad range of 50mmØ compatible accessories.
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 4.0 | 877 | 410 |
| 5.0 | 721 | 322 |
| 6.0 | 609 | 224 |
| 7.0 | 525 | 164 |
| 8.0 | 459 | 124 |
| 9.0 | 407 | 97 |
| 10.0 | 363 | 77 |
| 11.0 | 326 | 63 |
| 12.0 | 294 | 52 |
| 13.0 | 267 | 43 |
| 14.0 | 243 | 36 |
| 15.0 | 221 | 31 |
| 16.0 | 202 | 26 |
| 17.0 | 184 | 23 |
| 18.0 | 168 | 19 |
| 19.0 | 153 | 17 |
| 20.0 | 139 | 14 |
