Name: A34 Square 0.5m Linear Truss (including bolts &amp; spigots sets)
SKU: GT-A34L050
Availability: InStock

SKU: GT-A34L050

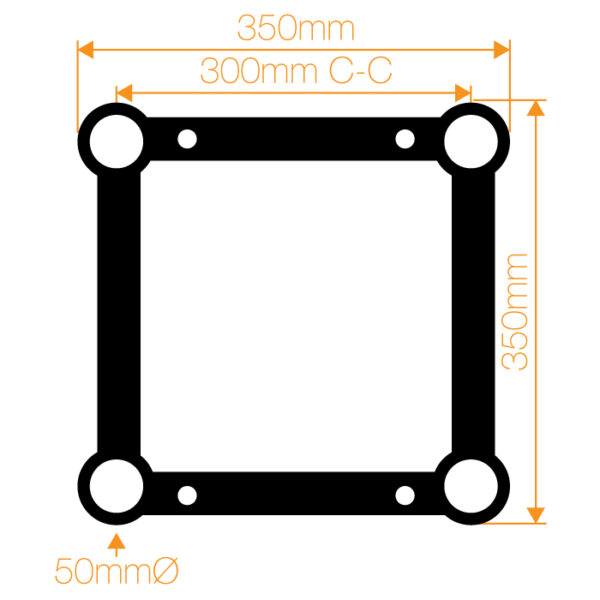

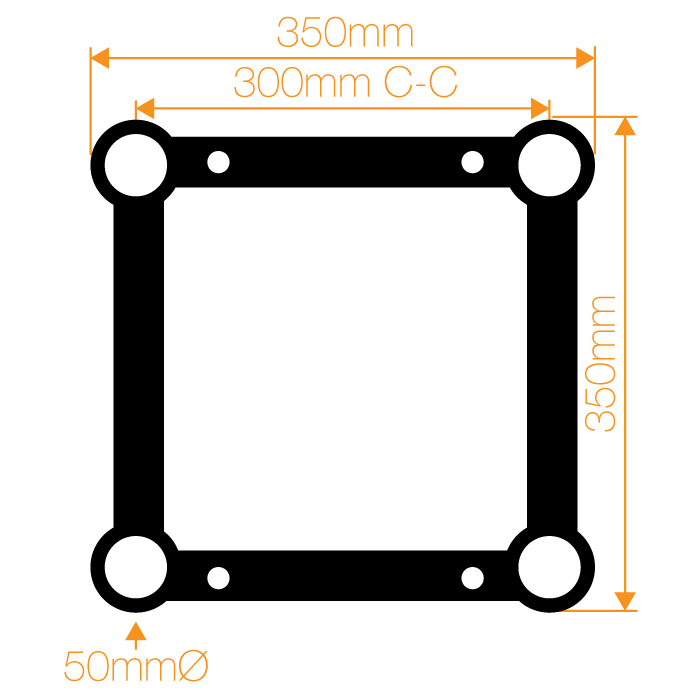

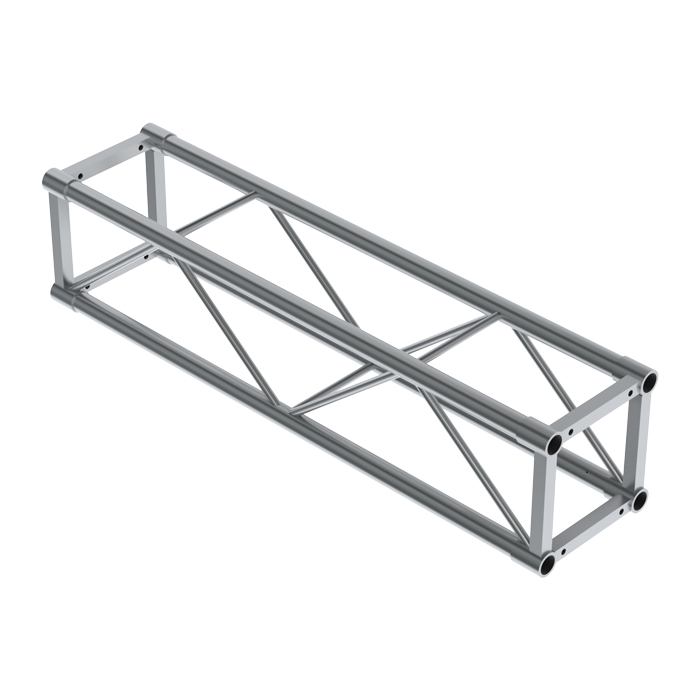

A34 Square Truss is a bolt-together truss measuring 350mmx 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the other two, A34 Square Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A34L050 Categories: A34 300mm Truss Straight Lengths, Global Truss, A34 300mm Truss Tags: Cosmic Truss, DNA truss, pre-rig truss, Lighting Grid, entertainment rigging australia, stage truss manufacturers, fd34 truss, alutruss, Space Frame, light truss, when is a rigger required, scaffolding for stage, Prolyte, Stage clamps, production, 300 Box truss, Lighting Bar, entertainment rigging companies, stage truss systems, pre rig, triangle truss, Touring Truss, lighting clamps, Scaffold Truss, rectangular truss, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, ground support truss system, truss tower, PRT, lighting trigger clamps, stage roof systems, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj, stage roof, stage lighting truss, Truss Circle, lighting truss australia, ground support truss, Plus Truss, box truss design, stage design, 300 Triangular Truss, GT A34L050, Circus Truss, global truss australia, theatre rigging, fd34, square truss, Truss Hinge, lighting truss dj, pre rig moving light truss, Alloy Truss, design quintessence, stage light trusses, Pub Truss, A34-5m, Custom Truss Box Truss, global truss catalog, titanav, stage with roof, global truss clamps, Tent Truss, lighting truss parts, ground support stage, Aluminium Truss, dj city, stage lighting mounting bars, ground support systems, Tri Truss, global truss distributor, titanav truss, truss stage roof, truss rigging, lighting truss system price list, mini beam truss, Steel Truss, dq, stage lighting rig, stage scaffolding, lighting truss, Triangular Truss, global truss f34 load data, truss coupler clamp, prt truss, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, Concert Truss, entertainment lighting, stage lighting truss design, truss roof system, truss, Flat Truss, global truss f44, truss lighting systems, stage roof truss, Clamps, lighting trusses, AV Truss, entertainment production, stage lighting trusses, truss suppliers, global truss, Ladder Truss, global truss for sale, truss plate, slick truss, globaltruss, Couplers, phantos, Truss Grid, entertainment rigging, stage truss design, truss fd34, stage truss, Theatre Truss, global truss pinnex, truss structures, layher beams

A34 Square Truss Load Table

Download

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
3.0	1,045	1,223
4.0	1,045	776
5.0	1,045	491
6.0	1,010	337
7.0	852	244
8.0	732	183
9.0	637	142
10.0	560	112
11.0	495	90
12.0	440	73
13.0	393	60
14.0	351	50
15.0	313	42

	Title	Type	Size
	A34-SQUARE-TRUSS_1	application/pdf	115 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Spigots Included	4 x 42mmØ
External Length (mm)	500
External Depth (mm)	355
External Height (mm)	355
Pack Length	520
Pack Depth	370
Pack Height	370
Net weight of the product (kg)	8.5
Pack Weight	9.3
Cubic volume (m³)	0.0712
