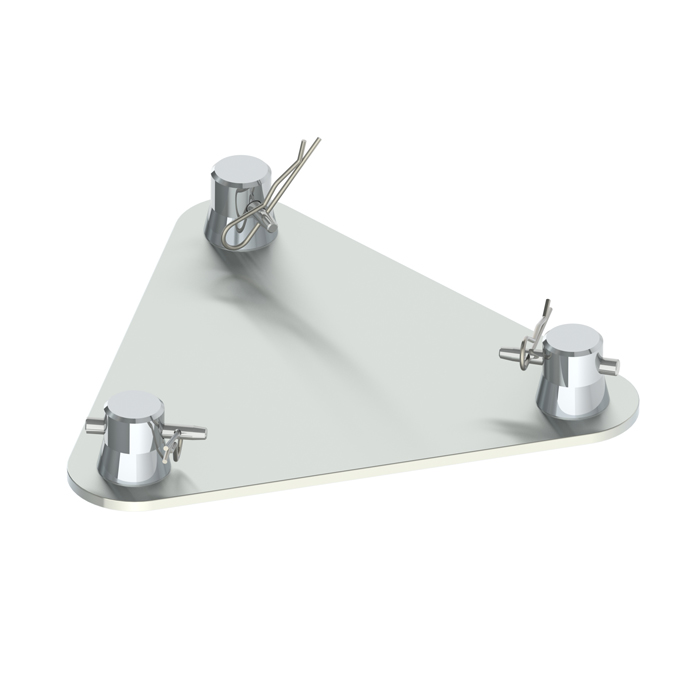

F23 Truss 240mm x 5mm Triangular Aluminium Base Plate with Half-Spigots, Pins & R-Clips

SKU: GT-BP-F23A24

Global Truss

• Triangular aluminium base plate, 240mm width, 5mm thickness
• Includes half-spigots, pins, and R-clips for secure connection
• Designed for the F23 Triangular Mini Truss system (220mm outside dimension, 35mmØ chords)
• Ideal for compact structural support in retail, exhibitions, trade fairs, and hospitality settings
• Compatible with 35mmØ clamping accessories for versatile rigging options

External Length (mm)
External Depth/Width (mm)
External Height (mm)
Finish

Various

Load Capacity (kg)
Truss Style (mm)



Chord Style (mm)



Diameter (mm)
Pack Length (m)

240

Pack Depth (m)

215

Pack Height (m)

35

Pack Weight (kg)



Net Weight (kg)
Product Type

Base Plate

Bracing Dimensions (mm)



Chord Dimensions



SKU: GT-BP-F23A24 Categories: , Brand:

Description

The F23 Truss Triangular Aluminium Base Plate (240mm wide, 5mm thick) is a lightweight yet durable base component designed for the F23 Triangular Mini Truss system. With an outside dimension of approximately 220mm and 35mmØ chords, the F23 system offers a compact structural solution ideal where space is limited but reliable support is necessary.

Supplied with half-spigots, pins, and R-clips, this base plate enables secure assembly and stable foundation for modular truss constructions. The F23 Tri Truss is popular for retail displays, museum exhibits, trade fairs, signage, and hospitality venues due to its subtle aesthetic and versatile design options, including straight lengths, radials, and junctions. It also works seamlessly with a wide range of 35mmØ clamping accessories for additional customisation.
