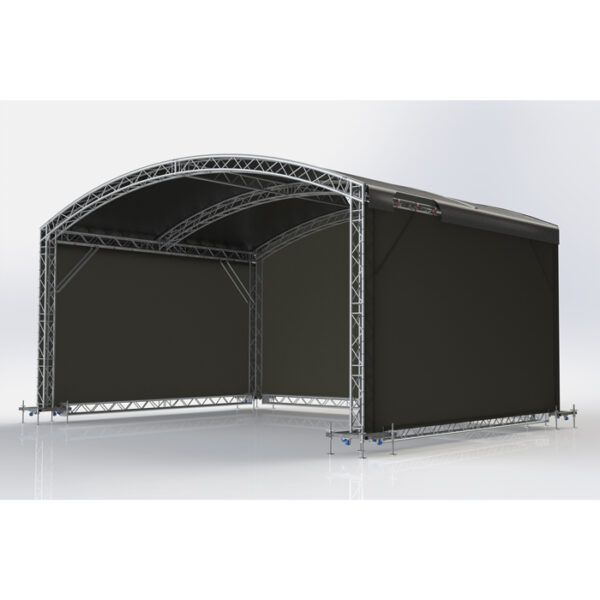

F34P 8.5m x 6.5m Truss Arc Roof
SKU: GT-ARCROOF850650
• All Conical Spigot Connectors, Pins & R-Clips
• Roof Cover: 650gsm EnduroFLEX FR Black PVC
• Side and Rear Walls: 400gsm Woven PVC Coated Black Mesh
Arc Roof Load Ratings:
• Max. UDL on side truss beams: 102 kg/m
• Max. UDL on centre F32 truss beam: 102 kg/m
• Max. UDL across each of 3 arches: 1,292 kg (152 kg/m x 8.5 m)
• Max. point load at 3 points per arch: 305 kg per point
• Max. Wind Speed: 25–35 m/s
• Ballast Weight Required: 3,000–4,800 kg total
Description
The F34P Truss Arc Roof (8.5m x 6.5m) is a fully certified, modular roofing system designed for outdoor events that demand both form and function. Built with F34P truss featuring 50mmØ x 3mm chords and engineered for strength, this curved truss roof structure provides a reliable and professional cover for small to medium-scale outdoor applications.
Ideal for use as a Front of House, stage roof, or event shelter, the arc design is visually striking and structurally robust—perfect for music festivals, cultural celebrations, pop-up retail, and community events. The full kit is available as a complete solution or can be customised with individual components to suit your unique setup, making it as flexible as your production demands.
The system is designed with efficiency in mind, allowing for quick assembly, disassembly, and transport using standard vehicles.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Chord Material | EN AW 6082 T6 |
| Bracing Material | EN AW 6082 T6 |
| End Socket Material | EN AW 6082 T6 |
| Conical Spigot Material | EN AW 6011 |
| Steel Pin Material | 8.8 Grade |
| Chord Dimension | 50mmØ x 3mm |
| Bracing Dimension | 20mmØ x 2mm |
| Connectors Included | All Conical Spigot Connectors, Pins & R-Clips are included |
| Roof Cover | 650gsm EnduroFLEX FR Black PVC |
| Side and Rear Walls | 400gsm Woven PVC Coated Black Mesh |
| ARC ROOF LOAD RATING | |
|---|---|
| Max. UDL on side truss beams | 102kg/m |
| Max. UDL on centre F32 truss beam | 102kg/m |
| Max. UDL over each of 3 arches | (152kg/m x 8.5) = 1,292kg |
| Max. load at 3 points per arch | 305kg per Point |
| Max WindSpeed | 25m/s - 35m/s |
| Ballast Weight Required | 3,000kg - 4,800kg Total |
