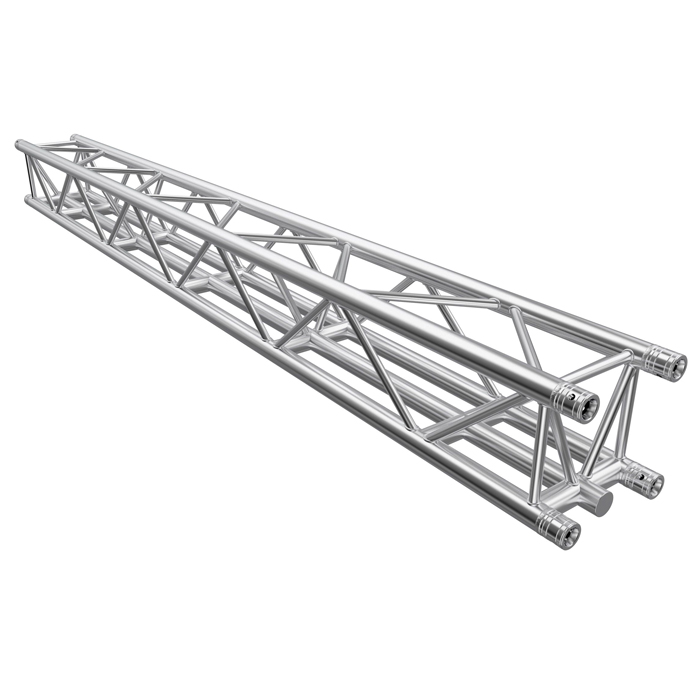

F35 3.0m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

Product Code: GT F35L300 Categories: , , , Tags:

Description
F35 3.0m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips
Chord Material

EN AW 6082 T6

End Socket Material

EN AW 6082 T6

Bracing Material

Conical Spigot Material

EN AW 2011

Steel Pin Material

8.8 Grade

Chord Dimension

50mmØ x 4mm

Bracing Dimension

20mmØ x 2mm

Connectors Included

External length (mm)

External depth (mm)

External height (mm)

Net weight of the product (kg)

Cubic volume (m³)

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
4.0511800800681511
5.0407800800678508
6.0337800800653506
7.0288800737562446
8.0250800656493393
9.0202800589437350
10.0162745533391314
11.0126674485353284
12.094614416298234
13.072561343246193
14.055484284204160
15.043402236169133
16.033334196141110
17.02627616211691
18.0202271339575
19.0151841087761
20.012146866148
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications)

Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.

Full engineering report available upon request.
LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
4.0511800800681511
5.0407800800625491
6.0270800595427335
7.0166726426306240
8.0108538316226178
9.072406239171134
10.050310182131103
11.03523713910079
12.0241801067660
13.017134795744
14.01197574132
15.0765382721
16.0437221612
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications)

Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.

Full engineering report available upon request.
LOAD TABLE (Bottom Outer Chords 1:100 Deflection*)
SPAN (m)UDL (kg/m)CPL (kg)THIRD POINTFOURTH POINTFIFTH POINT
45111,6941,021681511
54071,416960678508
63371,210836653506
72881,053737562446
8250929656493393
9202828589437350
10162745533391314
11126674485353284
1294614416298234
1372561343246193
1455484284204160
1543402236169133
1633334196141110
172627616211691
18202271339575
19151841087761
2012146866148
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications)

Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available.

Full engineering report available upon request.

Title Type Size
F35 5 Chord Truss Information Sheet application/pdf 262 KB
F35 Truss Load Table & Engineering Report application/pdf 1 MB
3.0m F35 5 Chord Truss Technical Drawing application/pdf 372 KB
